Utility dryvan resting on Top of the tires.

Discussion in 'Ask An Owner Operator' started by Xenergiserx, Oct 17, 2023.

  1. Oct 17, 2023 #1
    Xenergiserx

    Xenergiserx Light Load Member

    107
    60
    Feb 2, 2021
    0

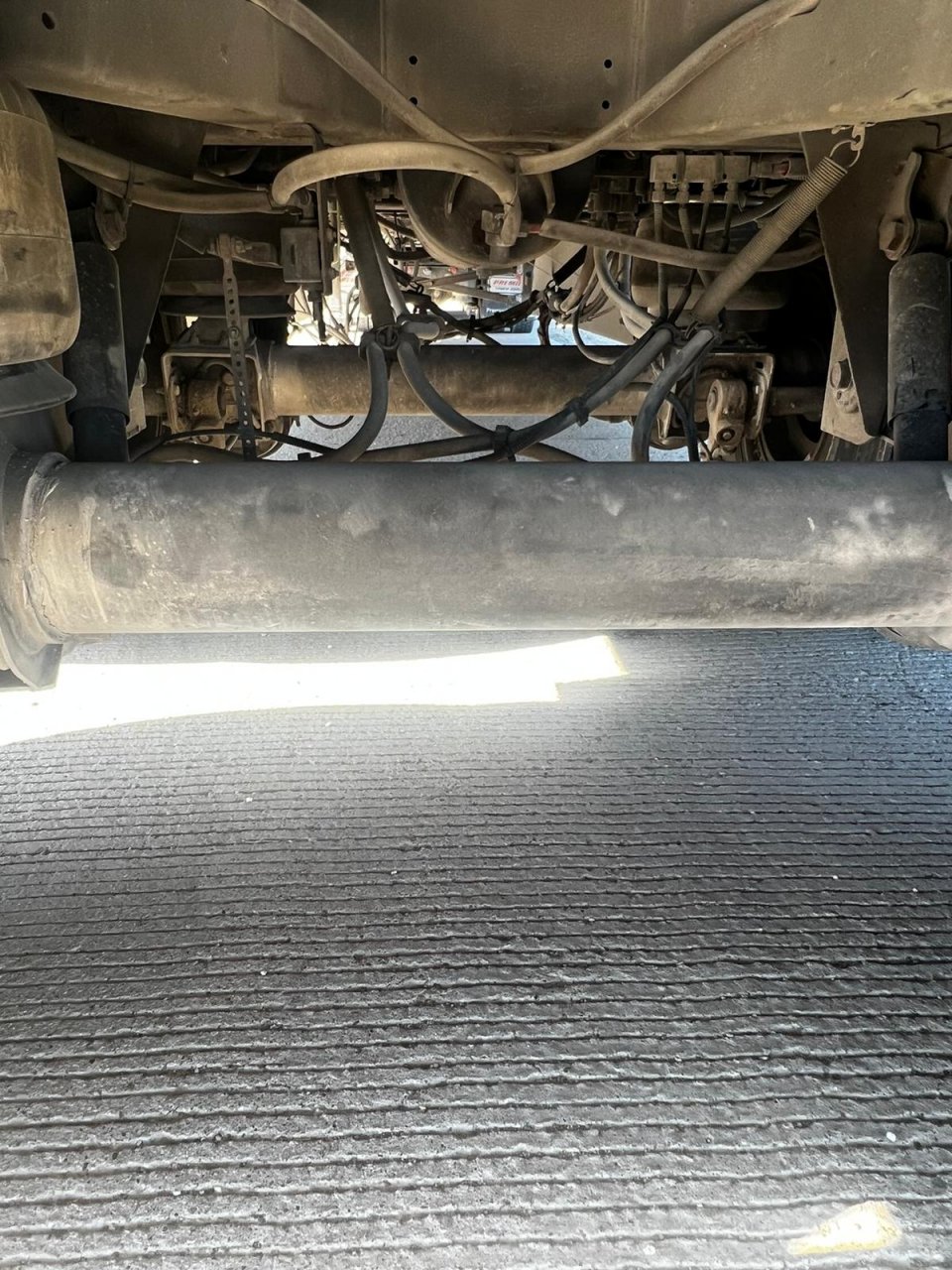

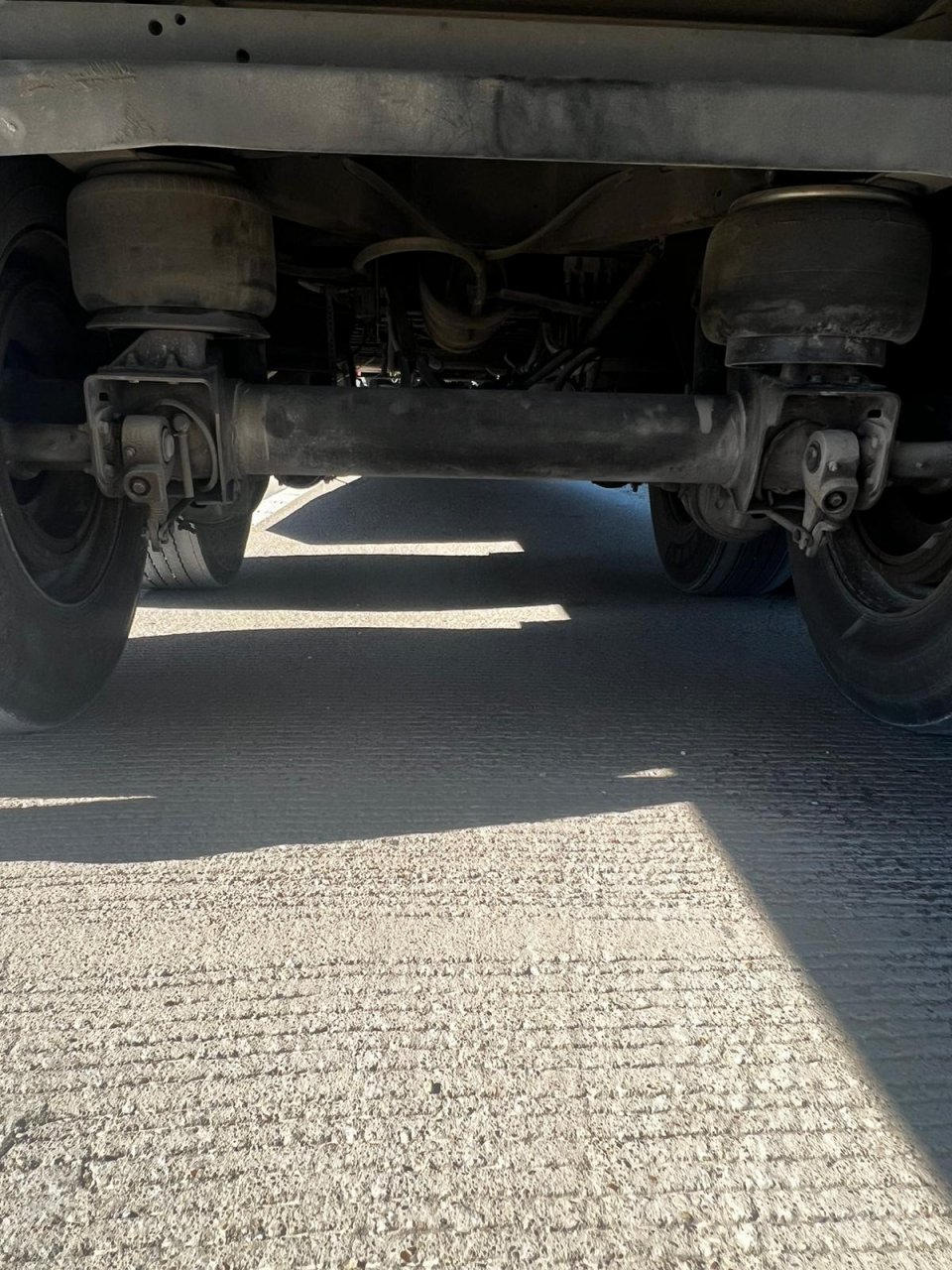

    When airbags are empty the right side of a dryvan trailer Lean on to of the tires. What can it be? Yes it’s loaded my my other dryvan not doing that. I changed the airbags. And didn’t fix it I put a picture of the other side. That is working properly. Thanks


    Attached Files:

    Xenergiserx, Oct 17, 2023
    Xenergiserx, Oct 17, 2023
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Oct 17, 2023 #2
    062

    062 Road Train Member

    6,215
    33,462
    Oct 20, 2013
    0
    062, Oct 17, 2023
    062, Oct 17, 2023
    #2
    Vampire Thanks this.
  4. Oct 17, 2023 #3
    Xenergiserx

    Xenergiserx Light Load Member

    107
    60
    Feb 2, 2021
    0
    Xenergiserx, Oct 17, 2023
    Xenergiserx, Oct 17, 2023
    #3
  5. Oct 17, 2023 #4
    rollin coal

    rollin coal Road Train Member

    13,287
    26,798
    Mar 29, 2008
    TN
    0
    Is there an air dump valve on it? Did you check the leveling valve?

    rollin coal, Oct 17, 2023
    rollin coal, Oct 17, 2023
    #4
    Siinman Thanks this.
  7. Oct 17, 2023 #5
    Xenergiserx

    Xenergiserx Light Load Member

    107
    60
    Feb 2, 2021
    0

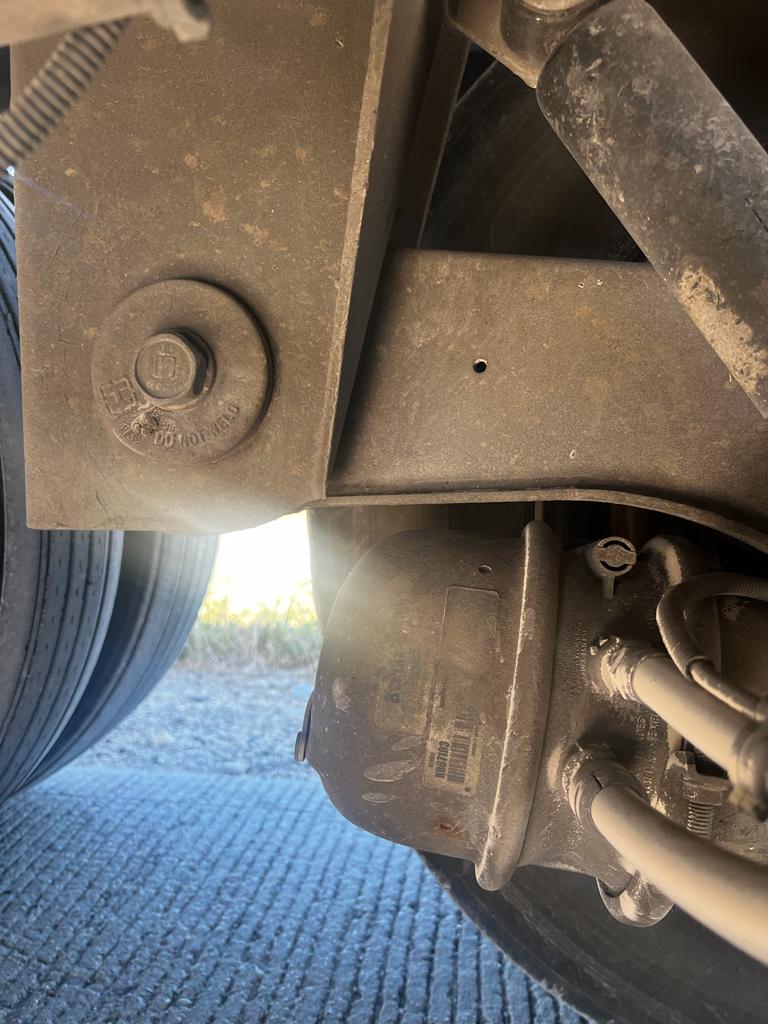

    when the bags are up it gives me around 1 inche on that bad side . When bags are Down it rest on top of the tires .


    Attached Files:

    Xenergiserx, Oct 17, 2023
    Xenergiserx, Oct 17, 2023
    #5
  8. Oct 17, 2023 #6
    wichris

    wichris Road Train Member

    4,285
    8,637
    Jan 17, 2011
    0
    Pretty sure it's the pivot bushings on that side

    wichris, Oct 17, 2023
    wichris, Oct 17, 2023
    #6
    Siinman Thanks this.
  9. Oct 17, 2023 #7
    062

    062 Road Train Member

    6,215
    33,462
    Oct 20, 2013
    0

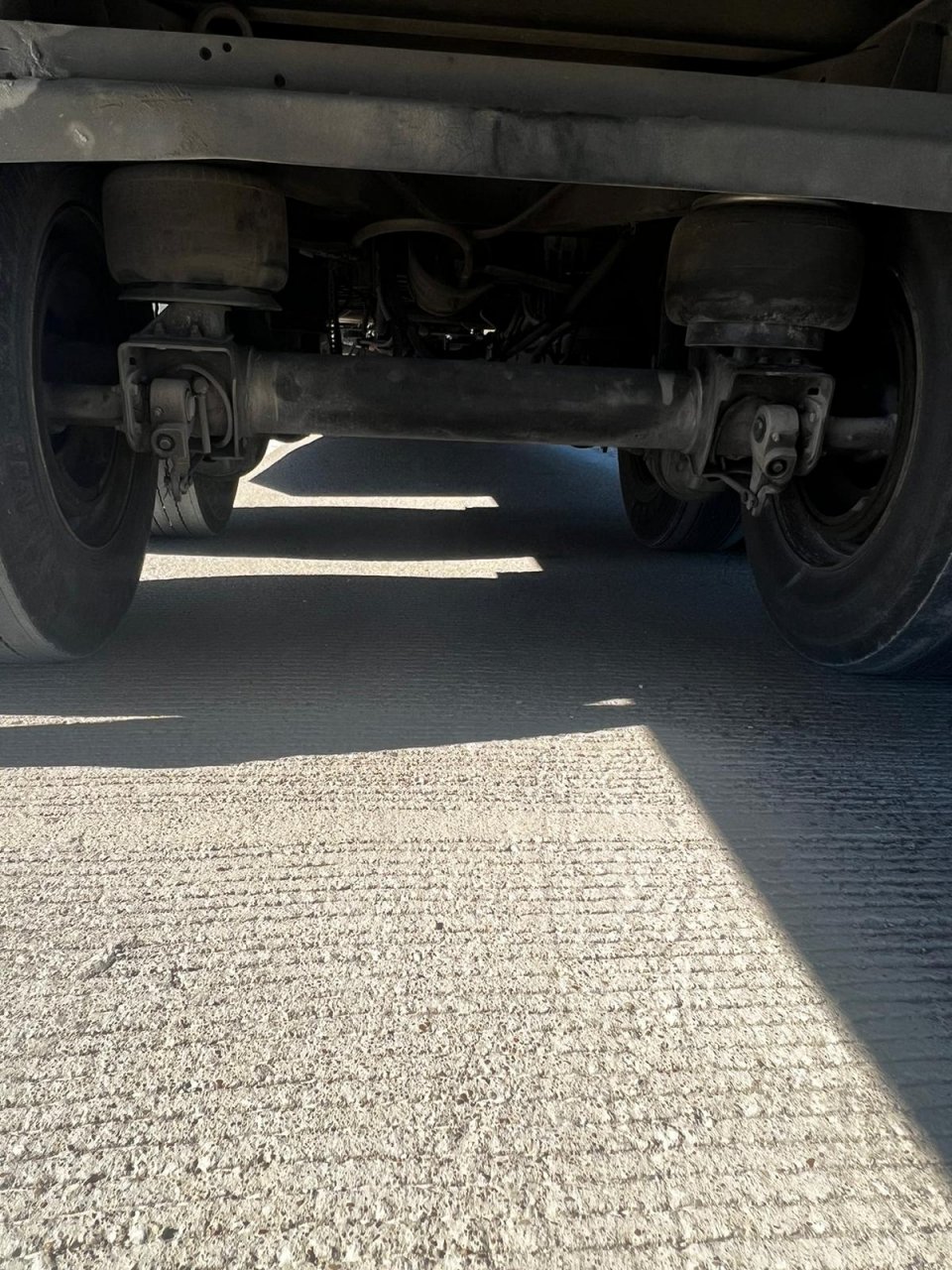

    Looks like two new air bags on one side. The base looks different,is that the side it’s leaning towards?

    062, Oct 17, 2023
    062, Oct 17, 2023
    #7
    Rideandrepair and Vampire Thank this.
  10. Oct 18, 2023 #8
    boneebone

    boneebone Road Train Member

    2,296
    2,367
    Mar 13, 2009
    0
    You have mismatched air bags. The left side has a flare base, the right side is a straight base.

    According to Hendrickson you cannot mix flare base with straight base air bags as it will give you different ride heights.

    You’ll need to choose either all straight base or all flare base, because they’re incompatible if they’re mixed.

    Replace the air bags with the base the came on your trailer originally from the factory and your ride height should return to normal.

    boneebone, Oct 18, 2023
    boneebone, Oct 18, 2023
    #8
    Rideandrepair, Siinman and Accidental Trucker Thank this.
  11. Oct 24, 2023 #9
    Xenergiserx

    Xenergiserx Light Load Member

    107
    60
    Feb 2, 2021
    0
    Yeah it was the airbags the plastic base was shorter. I didn’t know the trailer rest on those plastics things

    Xenergiserx, Oct 24, 2023
    Xenergiserx, Oct 24, 2023
    #9
