Vibration after brake job

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Juve1985, Jul 25, 2019.

  1. jason6541

    jason6541 Road Train Member

    1,521
    2,510
    Mar 5, 2012
    Omaha, NE
    0
    Are drums centered on hub. I use centering sleeves.

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Rideandrepair

    Rideandrepair Road Train Member

    10,066
    25,640
    Aug 8, 2015
    0
    If the shaking only happens when applying brakes, one or both the fronts could be a bit too tight. It’s not supposed to happen with ABS, but still does, till worn in. I’ve had brand new steer tires do it, after putting them on, then it goes away. Don’t know what to think about it. There’s such a thing as Truing a tire. They spin it and shave it slightly, making it perfectly round. Not many places do it, but I’ve heard of others that swear by it. Aside from maybe the new tires being inflated higher than the old ones, that were masking the problem. I’m curious what the cause is. Be sure to update if you get it figured out.

  4. God prefers Diesels

    God prefers Diesels Road Train Member

    1,801
    7,404
    Jun 26, 2020
    South Texas
    0
    That's because the wheel gets forced to center with the chamfered edge of the nuts. And with newer "hub pilot", it gets centered by the hub. If the wheel can move some on the studs, it doesn't matter, because it's still centered on the hub.

  5. kemosabi49

    kemosabi49 Trucker Forum STAFF Staff Member

    7,344
    25,033
    Jan 13, 2013
    SW Arkansas
    0
  6. jason6541

    jason6541 Road Train Member

    1,521
    2,510
    Mar 5, 2012
    Omaha, NE
    0
    Supposed to be but also had hubs not machined concentric. Brake drums are not machined perfect. So if drum not mounted concentric. Then you have high and low spots as from rotates and causes brake pads to pulsate and a hopping or pull. Won’t feel thru brake pedal like hydraulic brakes because the air is compressible.

  7. jason6541

    jason6541 Road Train Member

    1,521
    2,510
    Mar 5, 2012
    Omaha, NE
    0

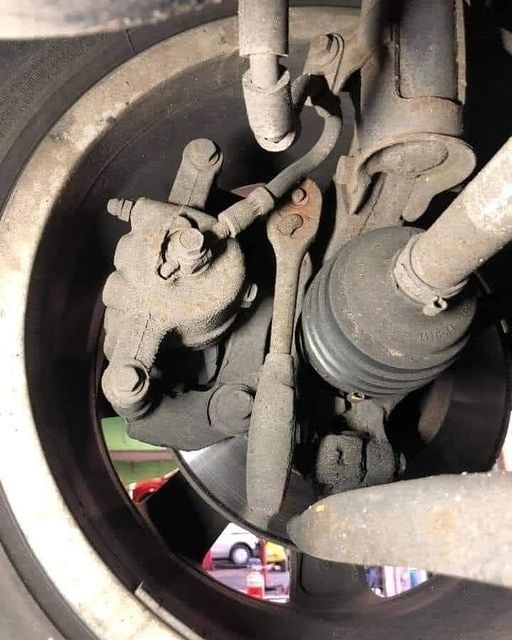

    Top quality brake job right there. Made sure caliper mounting bolt was tight.

  8. SmallPackage

    SmallPackage Road Train Member

    2,456
    6,724
    Dec 20, 2019
    Marion Texas
    0
    That’s the manual disc slack adjuster made by Snap-on.

    jason6541 Thanks this.
  9. jason6541

    jason6541 Road Train Member

    1,521
    2,510
    Mar 5, 2012
    Omaha, NE
    0
    $500.00 specialty tool right there.
    But seriously surprised it was still on there it looks like it had been awhile.

  10. Nikala2020

    Nikala2020 Bobtail Member

    3
    1
    Sep 6, 2019
    0
    I agree with you, but cant get rid of the vibration and squeaky noise upon breaking. I just got the new Meritor drums and will be installing tomorrow, going to leave the Meritor brake shoes which is brand new one it has only 3k on it. Let's see what kind of results I will get and will post on here. thank you again.


    God prefers Diesels Thanks this.
