Volvo 2013 ATC fault. Axle load sensor?

Discussion in 'Volvo Forum' started by Snailexpress, Sep 4, 2018.

Page 2 of 2
  1. Oct 5, 2018 #11
    high_roller_302

    high_roller_302 Bobtail Member

    28
    20
    Feb 9, 2012
    Canada
    0
    What is the build year and month of the truck. Will be listed on tag on driver side door jamb.

    high_roller_302, Oct 5, 2018
    high_roller_302, Oct 5, 2018
    #11
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Oct 6, 2018 #12
    Snailexpress

    Snailexpress Road Train Member

    2,675
    6,069
    Apr 28, 2014
    Rocky
    0
    PROBLEM IS SOLVED!!!!!!!!!
    There is two sensors for rear suspension pressure. The one on very top left if you are looking from the cab is rear suspension pressure for instrument cluster, marked as rear suspension pressure.
    The one which is for ABS module is on the very bottom left, marked as D2.

    Snailexpress, Oct 6, 2018
    Snailexpress, Oct 6, 2018
    #12
    Johny41, high_roller_302 and QUALITYTRUCK Thank this.
  4. Oct 7, 2018 #13
    high_roller_302

    high_roller_302 Bobtail Member

    28
    20
    Feb 9, 2012
    Canada
    0

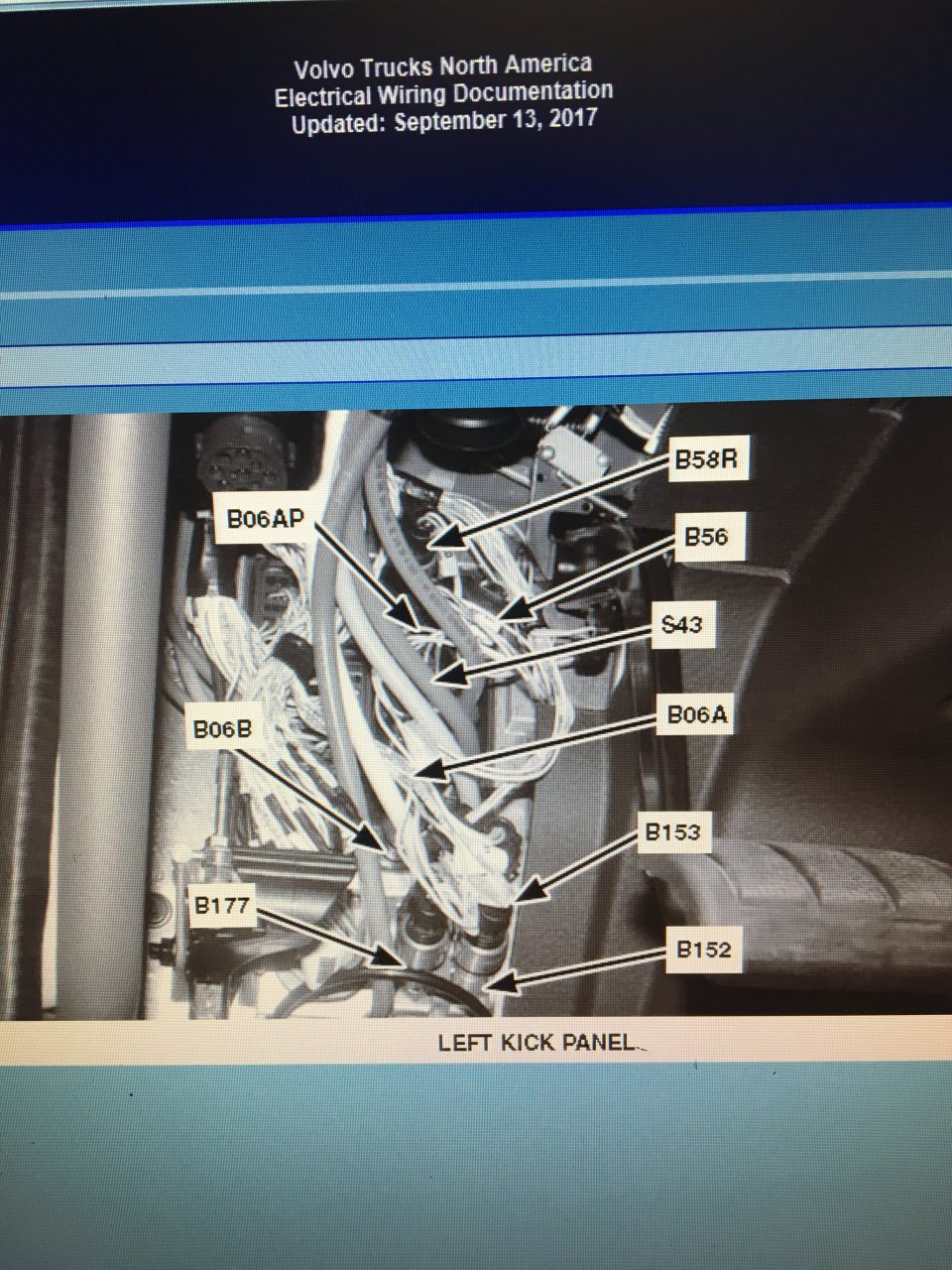

    Nice. I was going to send you this pic which shows the same thing but wanted to make sure it was valid for your build date. B58R is one but B177 is the one that signals the Bendix ecu. At any rate. Good find.


    Attached Files:

    high_roller_302, Oct 7, 2018
    high_roller_302, Oct 7, 2018
    #13
    Snailexpress Thanks this.
  5. Oct 7, 2018 #14
    Snailexpress

    Snailexpress Road Train Member

    2,675
    6,069
    Apr 28, 2014
    Rocky
    0
    Thank you. Very helpful picture. I figure out it by looking closer on the firewall from the engine side. There is T-connector for rear suspension airline to split pressure between two sensors. really hard to notice behind all wires and airlines.
    And one important things to notes. The damage was made couple months ago when I was searching for air leaks and sprayed firewall air fittings with dish soap water. Some water got inside the plug and cause corrosion.

    Snailexpress, Oct 7, 2018
    Snailexpress, Oct 7, 2018
    #14
  7. Jan 4, 2019 #15
    rhitrucking

    rhitrucking Light Load Member

    163
    72
    Feb 7, 2017
    0
    How do you get B58R out? its got a big metal cover that hides the slide to release

    rhitrucking, Jan 4, 2019
    rhitrucking, Jan 4, 2019
    #15
  8. Aug 14, 2019 #16
    DarkAlex

    DarkAlex Bobtail Member

    2
    0
    Aug 12, 2019
    0
    Having a similar issue, but the connectors look good, none of the air pressure gets displayed until I unplug the sensors and plug em back in then they work, turn the truck off and then on and they stop working again. Have no idea what's going on...

    DarkAlex, Aug 14, 2019
    DarkAlex, Aug 14, 2019
    #16
  9. Jan 12, 2020 #17
    Jultrans178

    Jultrans178 Bobtail Member

    8
    0
    Jan 12, 2020
    0
    Hello everyone!
    I'm in need of help in regards the TCS and ABS ( on the truck), please.
    The codes that I got on the computer are in the Brake ECU tab:

    MID 136 SID 89 FMI 2
    MID 136 SID 4 FMI 14

    My unit it's a 2012 Volvo vnl 670 ,Cummins isx ,13 speed.
    Vin CN 553443
    So the TCS light in the cluster it's solid ON, the switch on the dashboard it doesn't do anything if turned on/off.
    It started to be like this ,ON ,since I tried to enter the shop where the ground level was different, so I switched ON the front axle switch in order to move .Since then the TCS stayed on. While trying to switch it off from the button it doesn't do anything.
    I greatly appreciate your time and expertise into all your answers posted above. Hope you can help me.

    Thanks allot !

    Jultrans178, Jan 12, 2020
    Jultrans178, Jan 12, 2020
    #17
