Volvo D16 Injector question

Discussion in 'Volvo Forum' started by bonous, Apr 25, 2017.

Page 1 of 4
  1. Apr 25, 2017 #1
    bonous

    bonous Light Load Member

    209
    69
    May 31, 2014
    0
    Hi everyone,
    Can anyone tell me, if when I replace injectors at the house and drive 50 miles to the nearest volvo shop to get the injections program to the ecm, will that be okay or will the drive to shop cause any damage to the new injectors? thanks in advance!

    bonous, Apr 25, 2017
    bonous, Apr 25, 2017
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Apr 25, 2017 #2
    QUALITYTRUCK

    QUALITYTRUCK Road Train Member

    1,801
    1,762
    Jun 14, 2009
    romulus,mi
    0
    You will be ok. Wait for Nasriza to answer though. He knows more about D16 than me.

    QUALITYTRUCK, Apr 25, 2017
    QUALITYTRUCK, Apr 25, 2017
    #2
    bonous Thanks this.
  4. Apr 25, 2017 #3
    nasriza

    nasriza Road Train Member

    2,397
    2,070
    Feb 1, 2013
    Chicago, IL
    0
    nothing will happen to injectors if you change it out properly just make sure to write down rightnumber and nothing will happen don't even worry about it i will suggest if you have stainless steel cups volvo calls for changing the cup everytime you replace the injector for proper sealing. otherwise you might have compression getting in the fuel system also make sure you replace injector hold down bolt as well d16 used to like really breaking this bolts and it's better to replace for new.

    nasriza, Apr 25, 2017
    nasriza, Apr 25, 2017
    #3
    Confused and bonous Thank this.
  5. Apr 25, 2017 #4
    nasriza

    nasriza Road Train Member

    2,397
    2,070
    Feb 1, 2013
    Chicago, IL
    0
    i never look forward to doing one of these always a pain in the ### with the valve cover having to go in the cab and all. Make sure please to either use a vacum pump or do it my way take a long blower and blow all the fuel out of the piston and make sure engine brake valve o rings seat properly so you dont have oil psi drop.

    nasriza, Apr 25, 2017
    nasriza, Apr 25, 2017
    #4
    Confused, KB3MMX and bonous Thank this.
  7. Apr 25, 2017 #5
    bonous

    bonous Light Load Member

    209
    69
    May 31, 2014
    0
    Well noted Narsriza. Thanks a bunch!!!!

    bonous, Apr 25, 2017
    bonous, Apr 25, 2017
    #5
  8. Apr 27, 2017 #6
    bonous

    bonous Light Load Member

    209
    69
    May 31, 2014
    0
    Nasriza, I need your expertise again. I have removed five injectors but the injector in the #5 bore is stuck. I have tried to gently pry it making sure I don't cause any damage to the head but it seems is stuck in there pretty well. The H.C.B-B1393 tool I have is to remove/ install the sleeve but I don't have any injector puller. Any suggestion?

    bonous, Apr 27, 2017
    bonous, Apr 27, 2017
    #6
  9. Apr 27, 2017 #7
    bonous

    bonous Light Load Member

    209
    69
    May 31, 2014
    0
    Just an update on the stucked injector. it's out. I place a bottle jack on the frame and raised it up as hight as it goes and was able to use a big long heavy duty pry bar to pry it out on it against the injector, and the shaft in the middle of the injector spring broke, so I put a little bit of break a loose fluid on it and tapped the broken shaft slightly with a hammer, then i used a big grip pliers to wiggle it out. Inspected the bore and it looks all good no damage.

    bonous, Apr 27, 2017
    bonous, Apr 27, 2017
    #7
    KB3MMX Thanks this.
  10. Apr 28, 2017 #8
    nasriza

    nasriza Road Train Member

    2,397
    2,070
    Feb 1, 2013
    Chicago, IL
    0
    Thats always a pain there is a tool volvo sells to remove this injectors it works really well but the problem is its really expensive. have you ever installed and remove sleeves before. let me know if there is any other help you need just give me a call it's much easier 630-607-8889

    nasriza, Apr 28, 2017
    nasriza, Apr 28, 2017
    #8
    bonous Thanks this.
  11. Apr 28, 2017 #9
    bonous

    bonous Light Load Member

    209
    69
    May 31, 2014
    0

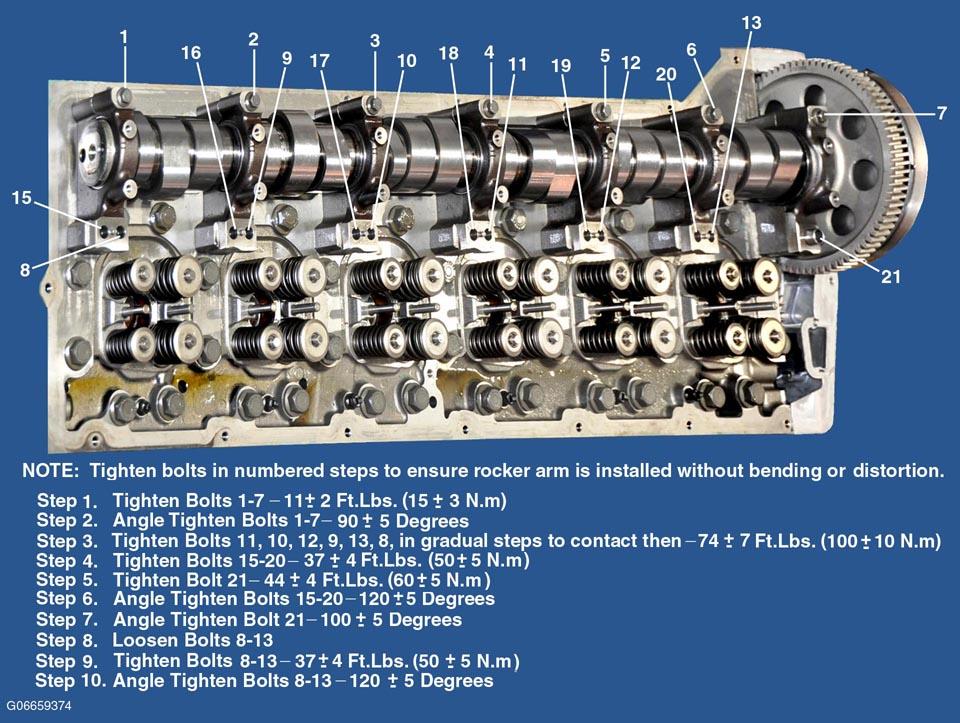

    Will do, I had one final question on the torque specs for the rocker arm shaft but I'll call you later for that or if you can pass it on here. Very much appreciate your help!!!

    bonous, Apr 28, 2017
    bonous, Apr 28, 2017
    #9
  12. Apr 28, 2017 #10
    nasriza

    nasriza Road Train Member

    2,397
    2,070
    Feb 1, 2013
    Chicago, IL
    0

    nasriza, Apr 28, 2017
    nasriza, Apr 28, 2017
    #10
    bonous Thanks this.
