W900L air bag replacement

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by mile marker 27, Aug 24, 2020.

  1. mile marker 27

    mile marker 27 Road Train Member

    1,156
    1,517
    Dec 4, 2019
    0

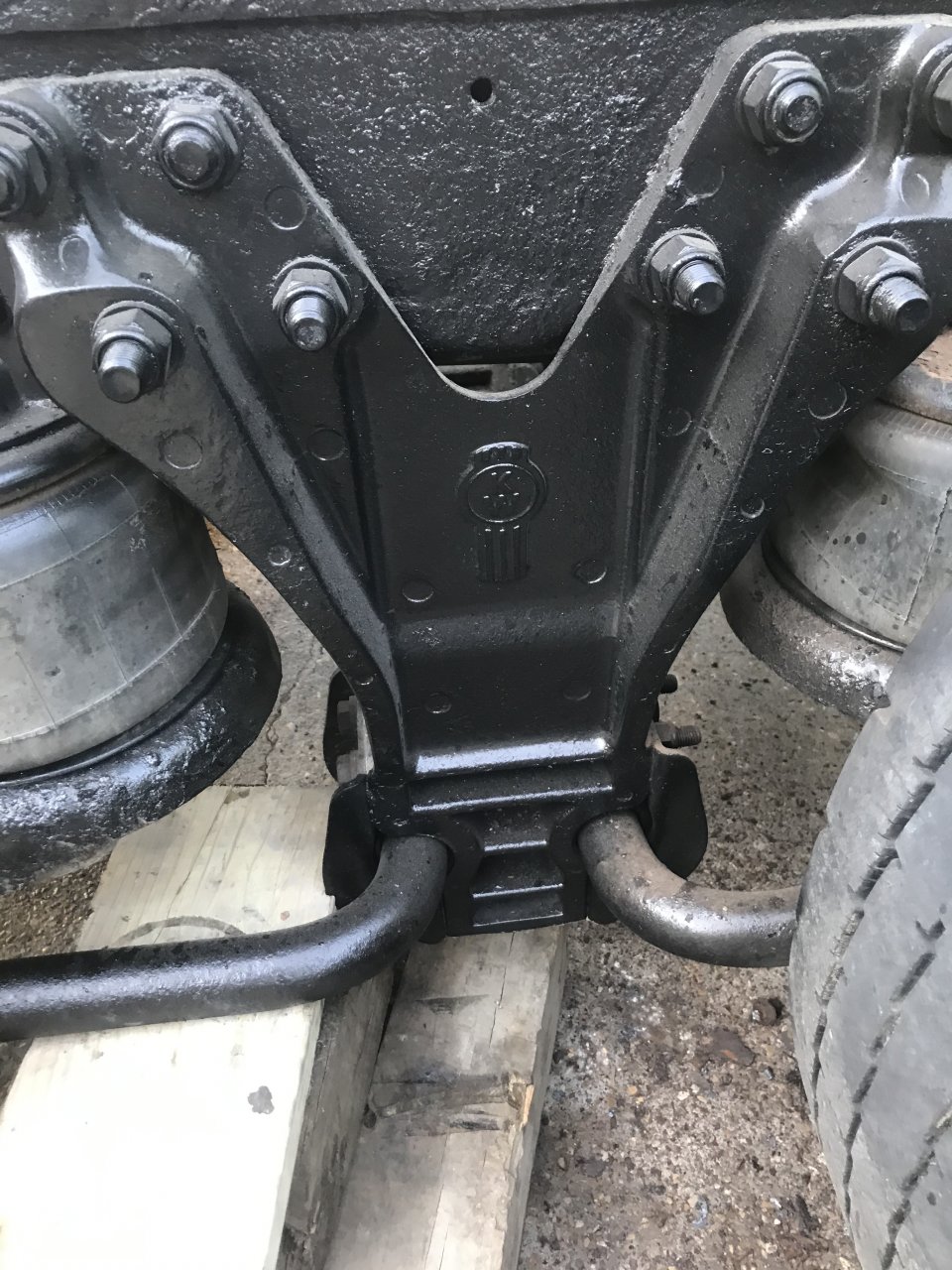

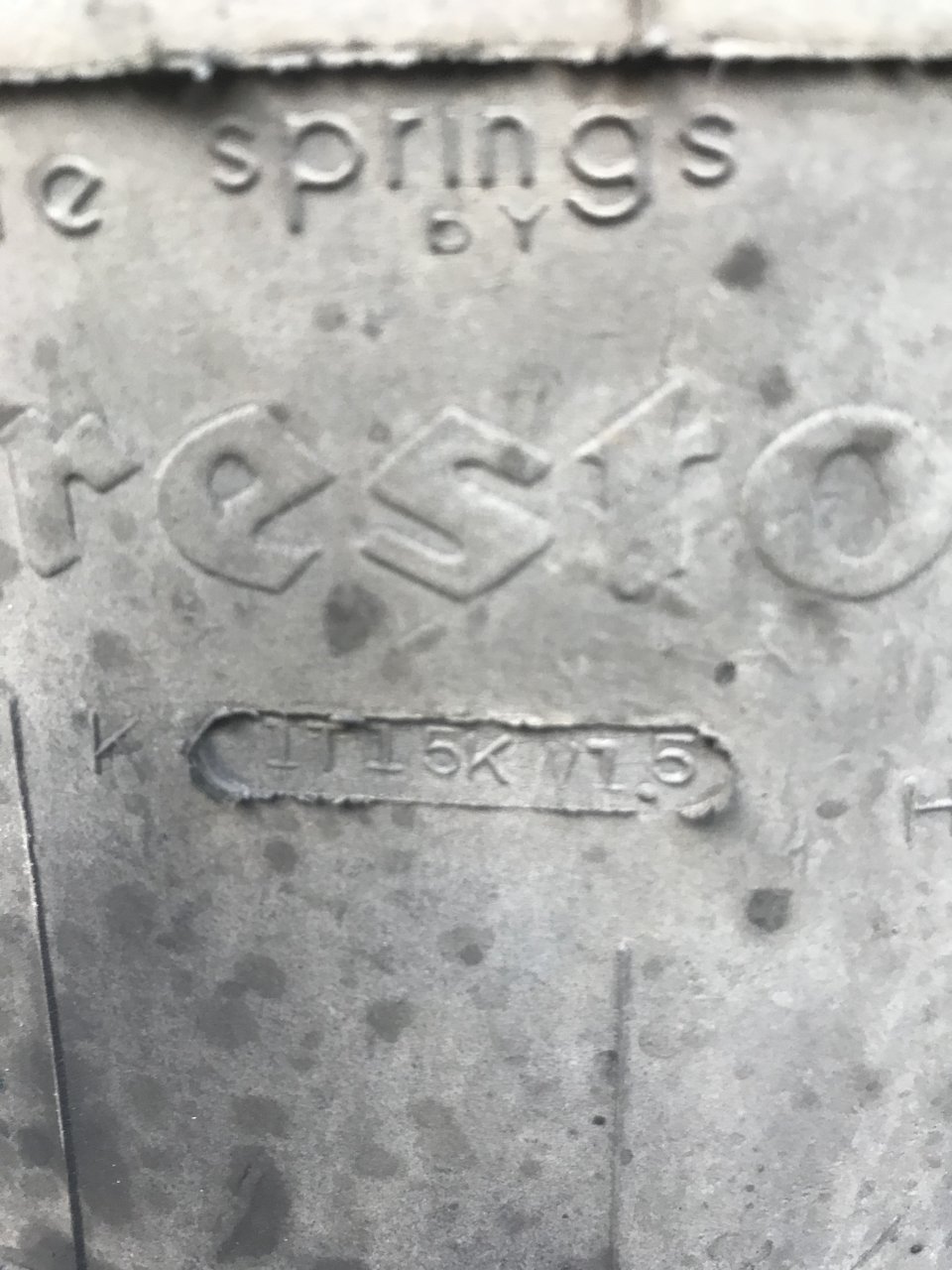

    E6791A89-FFD8-4EFA-A194-F82C1813BF5D.jpeg 0854FE16-9E69-416B-B78E-B9E4179B126C.jpeg 93 model with what I believe is the AG 100 system. Needing to replace a couple bags and here’s what the suspension looks like. Y’all got a part number for the bags I need?

    Rideandrepair Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. spsauerland

    spsauerland Road Train Member

    4,296
    10,877
    May 31, 2010
    West Harrison, In
    0
    Tag picture of top bag mount. I have 8 brand new ones for sale.

    mile marker 27 and Rideandrepair Thank this.
  4. BoxCarKidd

    BoxCarKidd Road Train Member

    4,167
    5,981
    Aug 26, 2014
    0
    Probably need the new larger 90 degree supply lines to go with them when you order.

    Rideandrepair Thanks this.
  5. Rideandrepair

    Rideandrepair Road Train Member

    16,472
    53,813
    Aug 8, 2015
    0
    Talk about hitting the jackpot!!! What a deal!! Looks like it’s your Lucky Day!!

  6. mile marker 27

    mile marker 27 Road Train Member

    1,156
    1,517
    Dec 4, 2019
    0

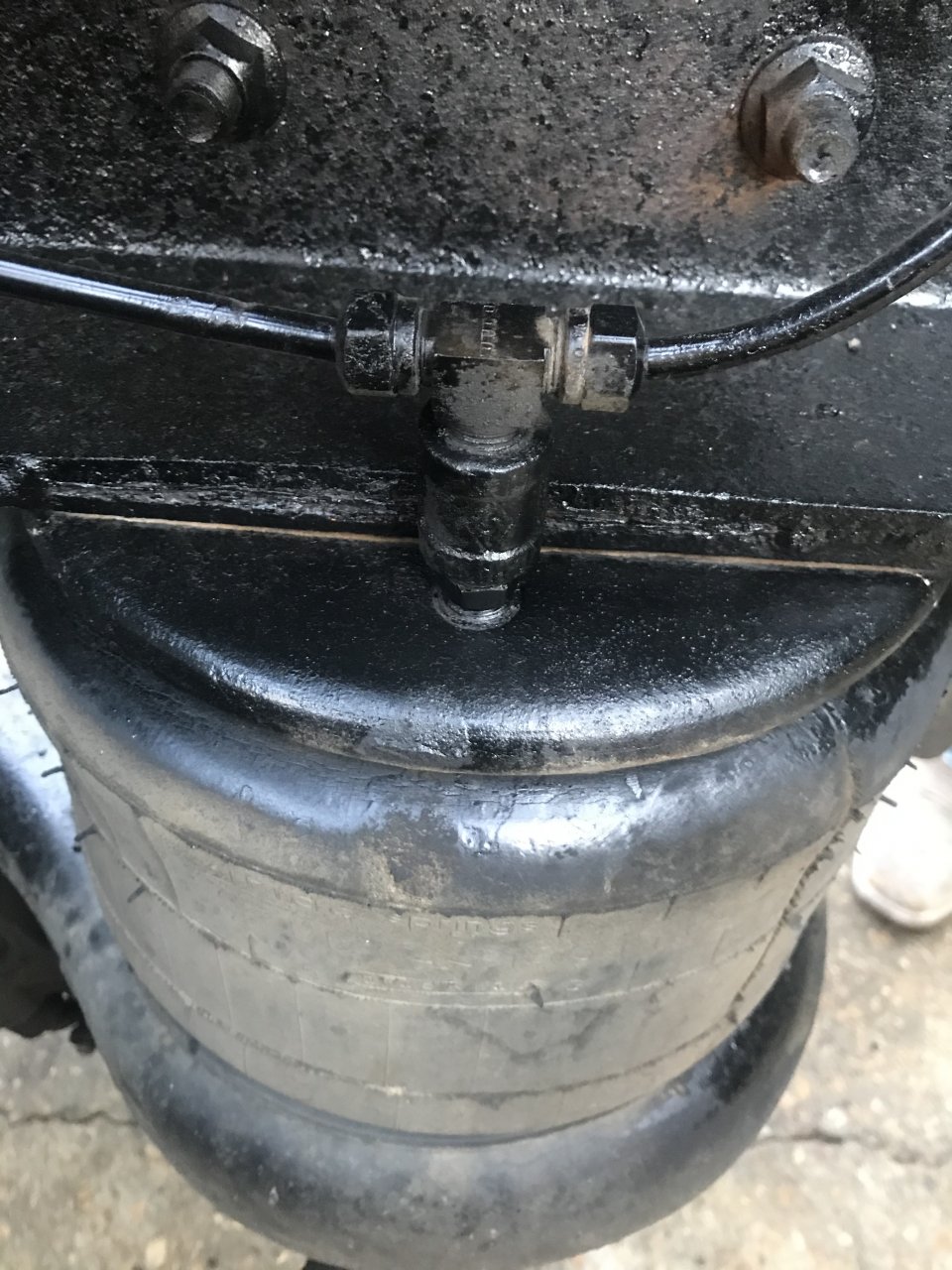

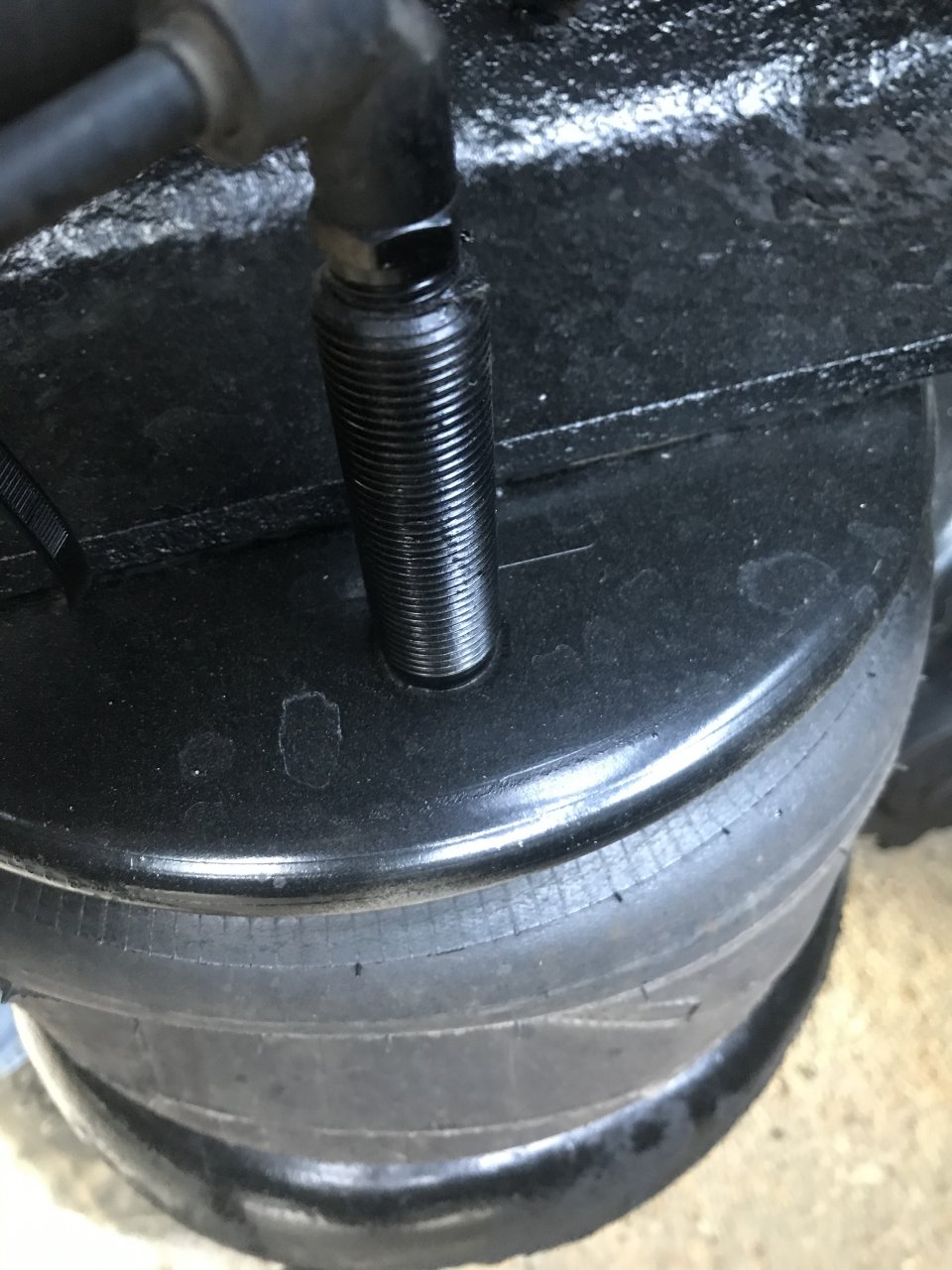

    1563C163-466B-4D7B-B8E2-B5A92D94266D.jpeg 5C8F2476-BB59-447A-BD4D-26B85F6F12CD.jpeg The bags on the left side have the small supply and all the bags on the left have the larger supply. My B model has the aluminum bracket that attaches the top of the bag to the frame but this “L” model uses the steel 90* bracket.

  7. spsauerland

    spsauerland Road Train Member

    4,296
    10,877
    May 31, 2010
    West Harrison, In
    0
    The AG100 changed the air bag around 94. Earlier ones used the W01-358-9422. Had aluminum spacer and 3/4 stud. The later ones use the W01-358-9616 (K303-16) that uses 3/8 stud and stamped steel bracket.

    mile marker 27 and nikmirbre Thank this.
  8. w9l

    w9l Medium Load Member

    316
    513
    Oct 12, 2013
    0
    If mm27 isn't interested??? I have been thinking about doing all 8 on mine and going to the bigger lines. Mine has the cast aluminum top plates. I know 2 of them need replaced. Could I, or should I retrofit with the later steel units?

  9. spsauerland

    spsauerland Road Train Member

    4,296
    10,877
    May 31, 2010
    West Harrison, In
    0
    I'll PM you.
