Weird tire wear on spread

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by God prefers Diesels, Jan 30, 2021.

  1. Joyce's Volvo

    Joyce's Volvo Light Load Member

    115
    152
    Jun 28, 2016
    0
    Try to match tires as close as possible that run side by side . Even with same size tires , they may be different in diameter because of different manufacturers . Such as a Goodyear 11-22.5 may be 1/4" different than a 11-22.5 made by toyo. I use a suitable tape line ( cloth or fiberglass ,not steel it won't flex enough) and measure the circumference along the center of the tread, 3" differentence is acceptable but , I try to be lest than 2". FYI 11-22.5 is the same outside dia as 285/75-24.5 .

    God prefers Diesels Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Hulld

    Hulld Road Train Member

    2,883
    6,567
    Oct 19, 2015
    Upstate NY
    0
    There is a lot of reading here and I might of missed something but the first question I have is?
    With the trailer jacked up and a flexible tape measure around each tire what is the difference between the inner and outer tire diameter on that side of that particular axel?

    bigguns and God prefers Diesels Thank this.
  4. God prefers Diesels

    God prefers Diesels Road Train Member

    4,198
    22,261
    Jun 26, 2020
    South Texas
    0
    That's basically what the guys are saying too. Even when I put that brand new tire on, it was a little bit shorter than the one next to it. I guess that caused it to get eaten from skipping and being dragged by the taller tire. I didn't realize they were so sensitive to it, but I won't be making that mistake again.

    bigguns and Hulld Thank this.
  5. Hulld

    Hulld Road Train Member

    2,883
    6,567
    Oct 19, 2015
    Upstate NY
    0
    Usually the tire that is taller when side by side with a shorter one carries more of the load and wears faster then the smaller diameter tire?

    bigguns and God prefers Diesels Thank this.
  6. God prefers Diesels

    God prefers Diesels Road Train Member

    4,198
    22,261
    Jun 26, 2020
    South Texas
    0
    I'd say since the smaller tire has less circumference, it's surface speed is slower, and it gets dragged. As far as load is concerned, that inner, larger tire definitely runs hotter than the little one.

    Hulld Thanks this.
  7. Lockport

    Lockport Light Load Member

    171
    113
    Mar 26, 2011
    Lockport, MB, CAN
    0
    Sliding/Spread axle drop deck trailer I run Chinese Sailun S637's at $300CA ($235US current) per tire and I haul an unmounted spare around in the neck. Change at any Love's for $60 in points and I'm laughing. The geometric on these axle configurations is murder on any tire. I do find if I try be do all 8 within a narrow time frame and can justify it, I get my best wear. Still, I've been running these for years 18/32's an 80mph speed rating and inflatable to 120psi. Economically they're the winner.

    650cat425 and God prefers Diesels Thank this.
  8. daf105paccar

    daf105paccar Road Train Member

    6,564
    7,293
    Apr 15, 2012
    0
    No.
    The shorter tire will wear the most.
    The taller one will wear less.

    God prefers Diesels Thanks this.
  9. Hulld

    Hulld Road Train Member

    2,883
    6,567
    Oct 19, 2015
    Upstate NY
    0
    I guess both tires can wear.

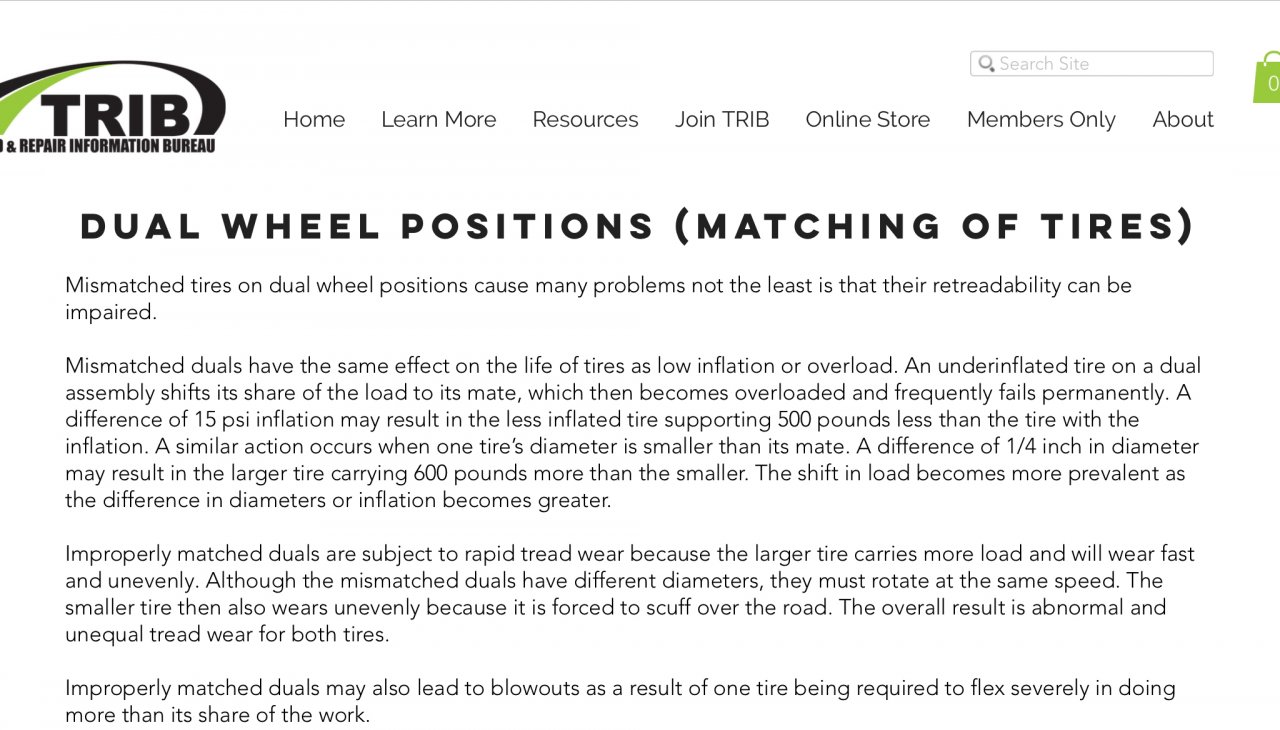

    But as the above article states I have also seen accelerated crazy wear patterns on the larger tire in mismatched dual applications including high heat because it is carrying so much more of the load.

    God prefers Diesels Thanks this.
  10. jamespmack

    jamespmack Road Train Member

    19,991
    215,830
    Mar 25, 2014
    OH
    0

    I run them on spread axle flat, and tandem hopper. Worth ever penny in the long run. Most guys are to cheap to invpest and maintain a quantity trailer tire. Out of 16 trailer tires, I have had 2 flat repairs in 6 years.

    Last edited: Jan 31, 2021
  11. jamespmack

    jamespmack Road Train Member

    19,991
    215,830
    Mar 25, 2014
    OH
    0

    This is why I used to dig thru new caps for a mich/bridge for a road service call. Not all of the shop monkeys understood my reasoning.

    tommymonza, Flint1, 650cat425 and 2 others Thank this.
