What is a 6x2 drivetrain?

Discussion in 'Freightliner Forum' started by Opus, Apr 22, 2018.

  1. AModelCat

    AModelCat Road Train Member

    Joined:
    Jul 7, 2015
    Messages:
    29,390
    Thanks Received:
    161,299
    Location:
    Canuckistan
    0
    No locker = no sale in my mind. When I singled out my W9 I looked specifically for an axle with a locker. Not gonna chance getting stuck on a speed bump lol.

    Bean Jr. and Opus Thank this.
  2. Opus

    Opus Road Train Member

    Joined:
    Dec 18, 2011
    Messages:
    20,001
    Thanks Received:
    128,351
    Location:
    South GA
    0
    right, thank you. I was just high centered the other day in a driveway and I had to lock out. Good info here. Thanks again

  3. AModelCat

    AModelCat Road Train Member

    Joined:
    Jul 7, 2015
    Messages:
    29,390
    Thanks Received:
    161,299
    Location:
    Canuckistan
    0
    Most highway spec trucks only have an interaxle lock. That only locks the two drive axles together so instead of only 1 out 4 wheels spinning out in a low traction situation, 2 out 4 (1 on each axle) will spin out. Diff locks lock the drive axle solid. On a truck with full lockers, all 4 corners are locked together when everything is engaged.

    Last edited: Apr 22, 2018
    Bean Jr. Thanks this.
  4. gokiddogo

    gokiddogo Road Train Member

    Joined:
    Mar 5, 2012
    Messages:
    8,786
    Thanks Received:
    14,769
    Location:
    Ontario Canada
    0
    I don't have the stones to engage them at speed.


  5. Opus

    Opus Road Train Member

    Joined:
    Dec 18, 2011
    Messages:
    20,001
    Thanks Received:
    128,351
    Location:
    South GA
    0
    Thank you all very much for your responses......once again TTR has proved to be an invaluable resource.

    Bean Jr. Thanks this.
  6. not4hire

    not4hire Road Train Member

    Joined:
    May 16, 2012
    Messages:
    7,142
    Thanks Received:
    26,957
    Location:
    Calgary
    0
    Not a problem.

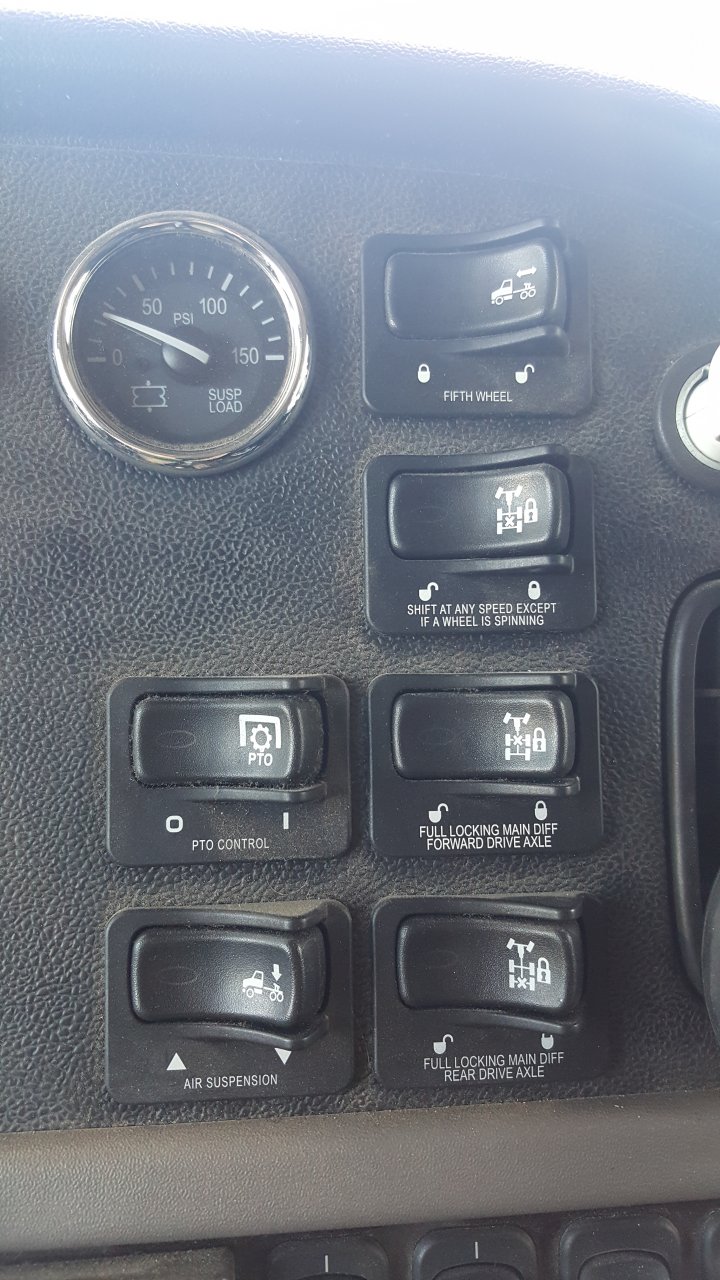

    Inter-axle: at any speed so long as you're not spinning (throttle on or throttle off), any road surface

    Differential: at or below the engagement speed (on newer trucks there's usually an engagement speed which is lower than the disengagement speed, both of which are controlled by the ECM, i.e., 25 kmm/h / 45 km/h... on my trucks I had the engagement speed and sometimes the disengagement speed increased), so long as you're not spinning or turning, should be very loose/slippery road surface​

  7. AModelCat

    AModelCat Road Train Member

    Joined:
    Jul 7, 2015
    Messages:
    29,390
    Thanks Received:
    161,299
    Location:
    Canuckistan
    0
    Its really no different than floating gears in a transmission. Your diff lock just locks an axle shaft to the carrier. As long as there's no speed variance between the left and right sides you should be fine.

    Last edited: Apr 22, 2018
    Bean Jr., gokiddogo and not4hire Thank this.
  8. Bean Jr.

    Bean Jr. Road Train Member

    Joined:
    Mar 30, 2014
    Messages:
    5,539
    Thanks Received:
    9,877
    0
    The 6x2 was the mileage kings' nocturnal emission in their pursuit of 10 mpg. The Signature Glider was the way to go, along with wide singles. Or so they thought. As everything settles, all these gimmicks don't seem worth the effort. Wide base tires, if they need to be replaced wipe out all the savings. Getting stuck and needing a tow wipes out all the savings.

    gokiddogo Thanks this.
  9. daf105paccar

    daf105paccar Road Train Member

    Joined:
    Apr 15, 2012
    Messages:
    6,564
    Thanks Received:
    7,293
    0
    Put a dumpvalve on the last axle.

  10. mnmover

    mnmover Road Train Member

    Joined:
    Apr 5, 2009
    Messages:
    1,237
    Thanks Received:
    1,104
    Location:
    Lichfield MN
    0
    Need to find out if dead axle is on the back or in the front and liftable as they are both considered 6 x 2.
