What is this part?

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by nikmirbre, Jul 24, 2021.

  1. nikmirbre

    nikmirbre Road Train Member

    3,961
    5,715
    Jul 27, 2011
    Concord,NC
    0

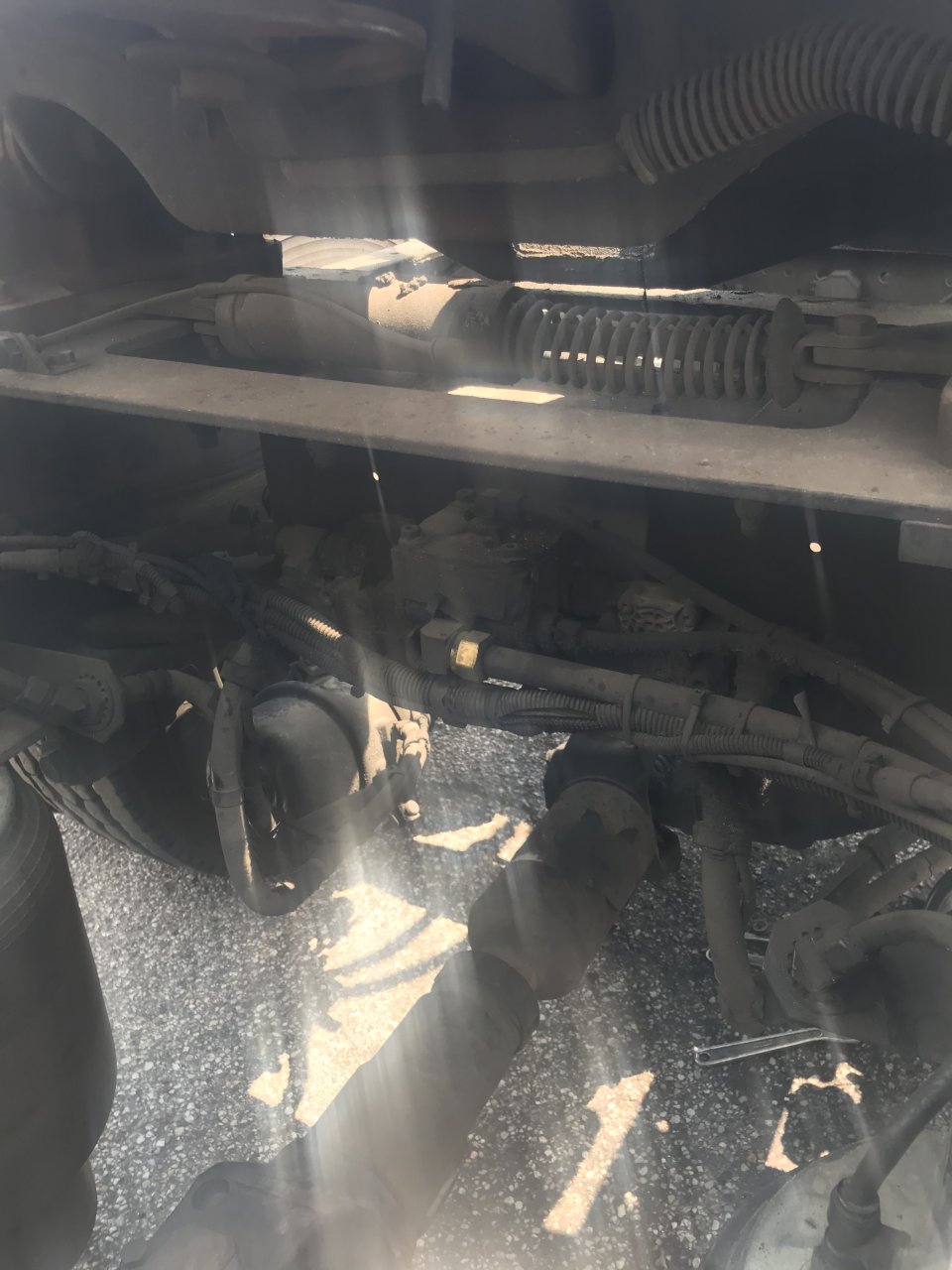

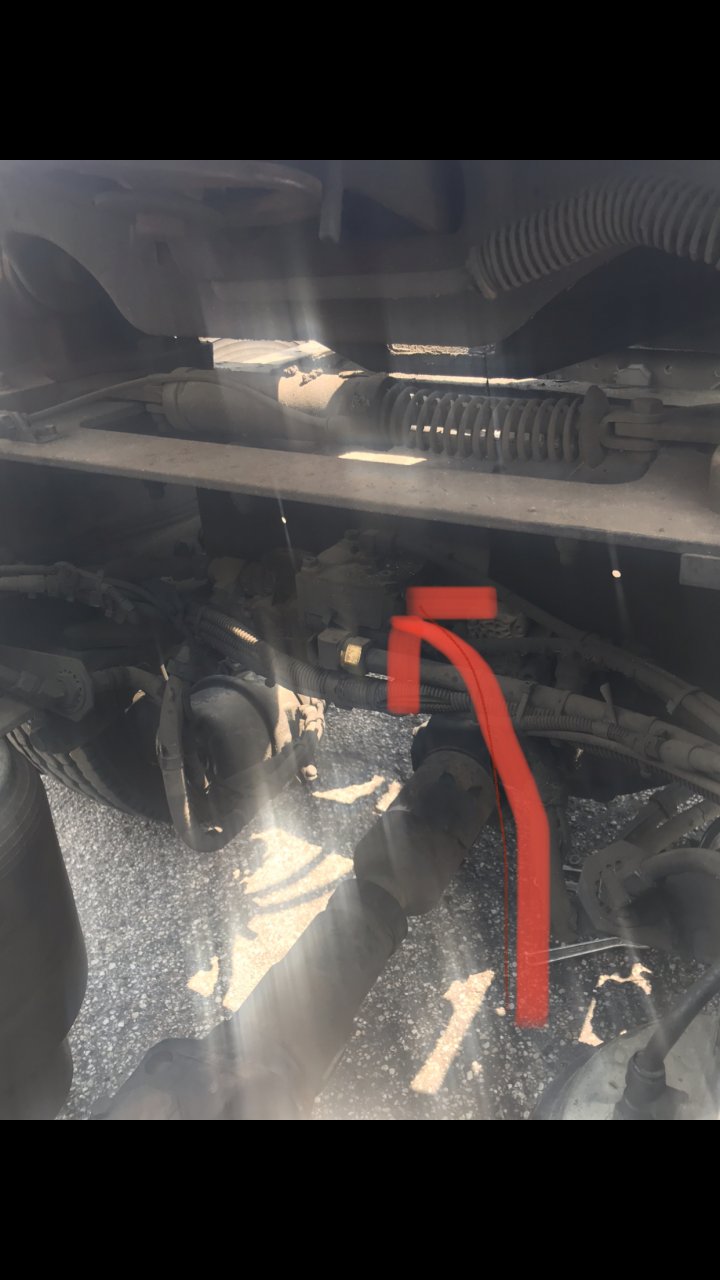

    I assume it’s some type of valve with all the different types of lines going in there. It’s leaking air at the bottom. I changed a brake chamber thinking that was where the air was leaking from however, it’s coming from the bottom of this valve.....it’s under my 5th wheel... B3180889-6ABC-4B7B-802C-3839B14574FF.jpeg 7C7D0E62-15D3-40BF-A52A-B4B683B6167C.jpeg

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. AModelCat

    AModelCat Road Train Member

    22,186
    103,688
    Jul 7, 2015
    Canuckistan
    0
    Looks like a relay valve. Where do the lines run to? Which side of the chamber?

  4. nikmirbre

    nikmirbre Road Train Member

    3,961
    5,715
    Jul 27, 2011
    Concord,NC
    0

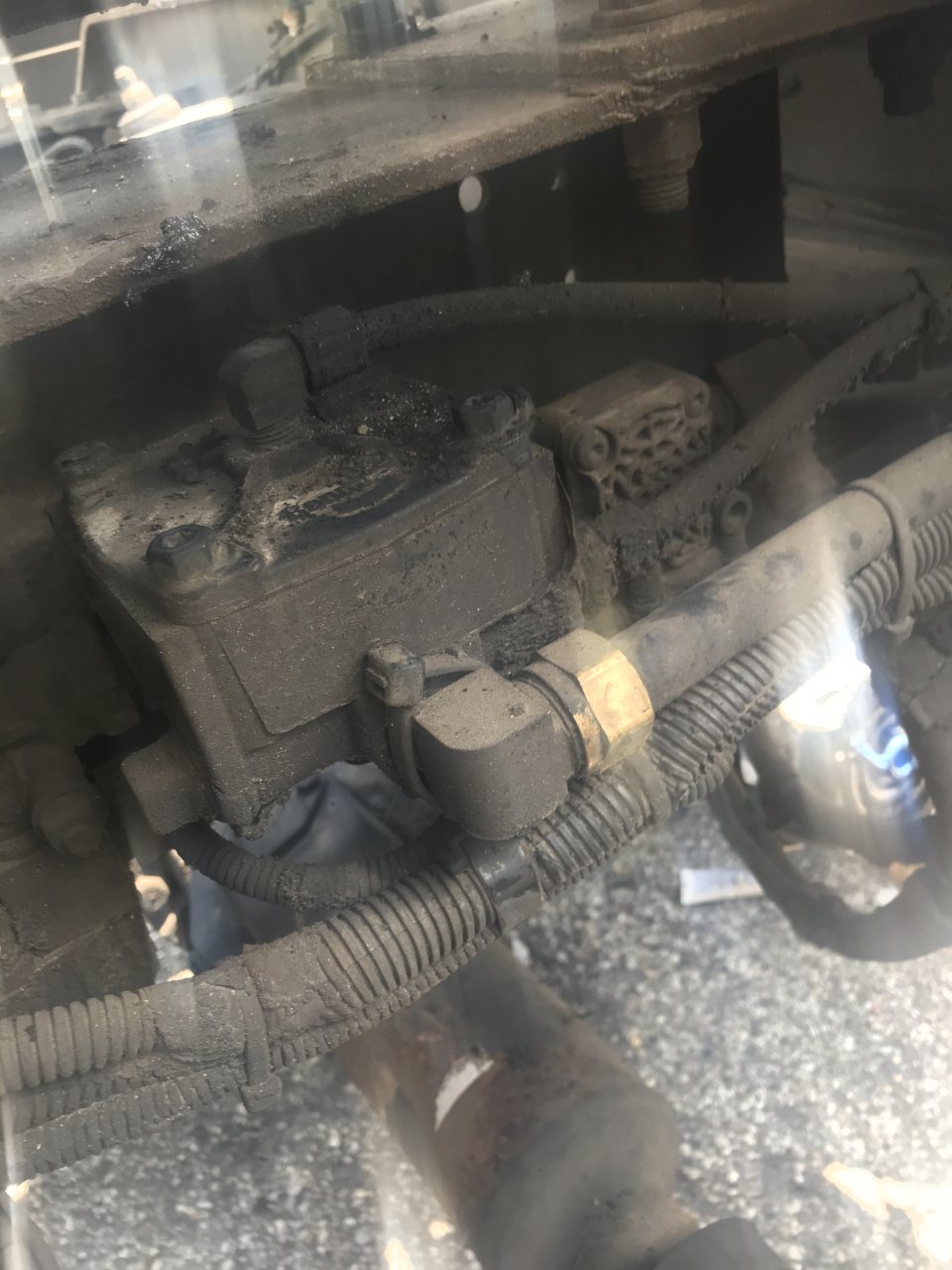

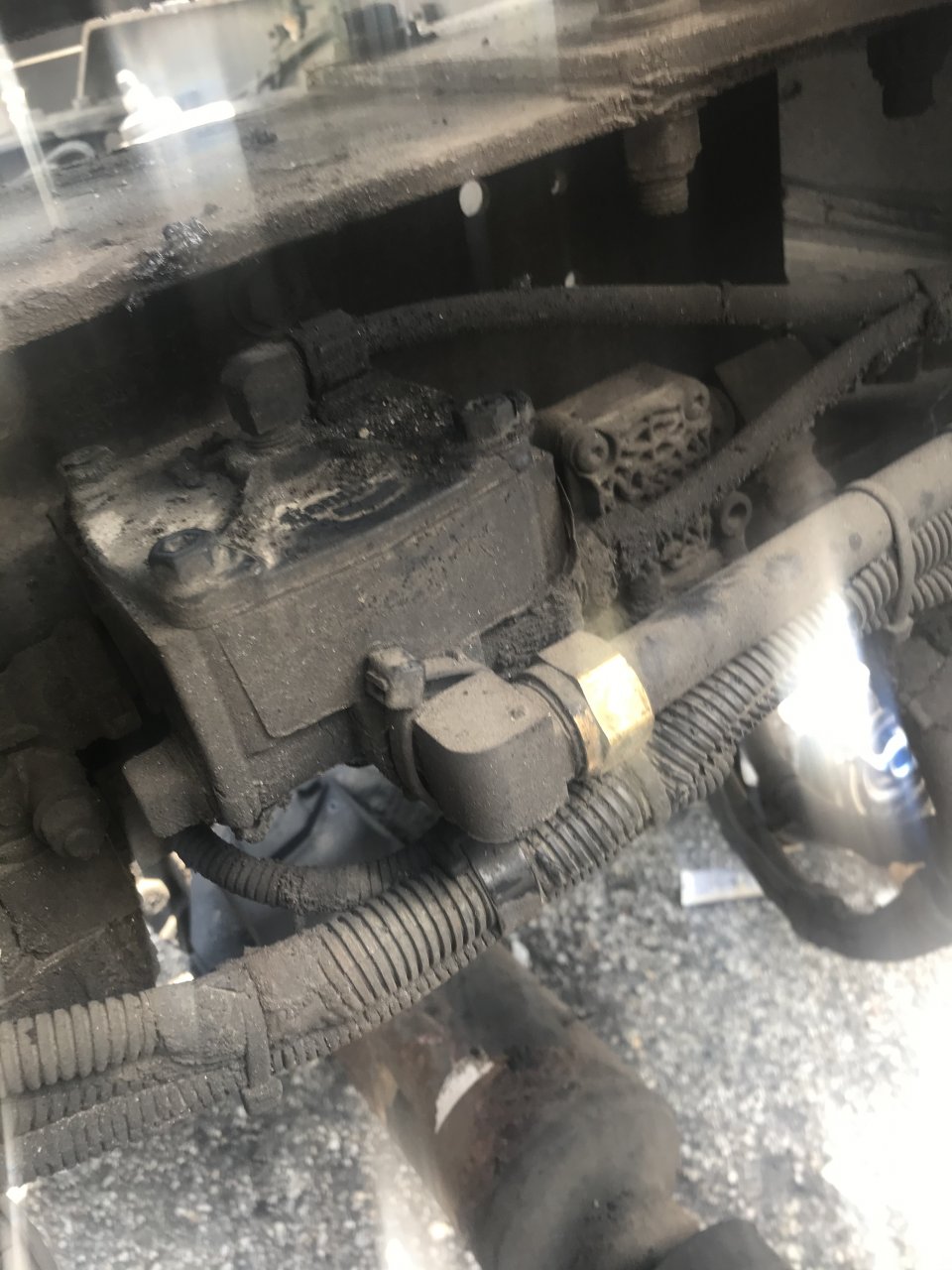

    Not sure what you mean by that. 801DF2FF-D6D0-44CD-A0F6-CE396462466E.jpeg 9BE18A58-DAEA-4E27-AFBD-5C4DED7495D0.jpeg

  5. AModelCat

    AModelCat Road Train Member

    22,186
    103,688
    Jul 7, 2015
    Canuckistan
    0
    That looks like a combination relay valve with ABS modulators. The outlet lines, if you chase them, do they go down to the service port on the brake chambers?

    p608 and D.Tibbitt Thank this.
  6. nikmirbre

    nikmirbre Road Train Member

    3,961
    5,715
    Jul 27, 2011
    Concord,NC
    0
  7. AModelCat

    AModelCat Road Train Member

    22,186
    103,688
    Jul 7, 2015
    Canuckistan
    0
    Does air leak out the exhaust port all the time or just when the park brakes are released?

    Does the truck have traction or stability control as well?

  8. nikmirbre

    nikmirbre Road Train Member

    3,961
    5,715
    Jul 27, 2011
    Concord,NC
    0
    just leaks from the exhaust port at the bottom when the park brakes are released. Yes it has traction control. I think I found the valve...I mean I think a KW dealer about 30 minutes away has one. Problem is I cant get an uber or a cab company from where I am. Im having to rely on Loves to go get it before the dealer closes:confused:. Its not allowing my brakes to release all the way.......

  9. AModelCat

    AModelCat Road Train Member

    22,186
    103,688
    Jul 7, 2015
    Canuckistan
    0
    I'd try and pinch off the park supply line at each chamber 1 at a time and see if it stops. 9 times out of 10 when a relay valve leaks out its exhaust its actually the result of something downstream backfeeding air. I'm thinking you might have a leaking pushrod seal between the spring side and service side on one of the brake chambers. That would definitely cause air to backfeed and blow out the exhaust on the relay.

    BoxCarKidd, D.Tibbitt and nikmirbre Thank this.
  10. nikmirbre

    nikmirbre Road Train Member

    3,961
    5,715
    Jul 27, 2011
    Concord,NC
    0
    Just so were clear...when you say park supply you mean the "service" line right?

    Pinch it off then release brakes and see if it leaks still? 1 chamber at a time....

  11. AModelCat

    AModelCat Road Train Member

    22,186
    103,688
    Jul 7, 2015
    Canuckistan
    0
    Nope. Pinch off the line going into the parking port of the brake chamber (its the port closest to the back end of the chamber, where the caging bolt goes). Then release the brakes. If it stops leaking out the valve then you've found a faulty brake chamber.

    nikmirbre Thanks this.
