What is valve called that releases air from airbags on tractor?

Discussion in 'Ask An Owner Operator' started by Forever237, Aug 10, 2022.

  1. Forever237

    Forever237 Light Load Member

    105
    47
    May 29, 2016
    0

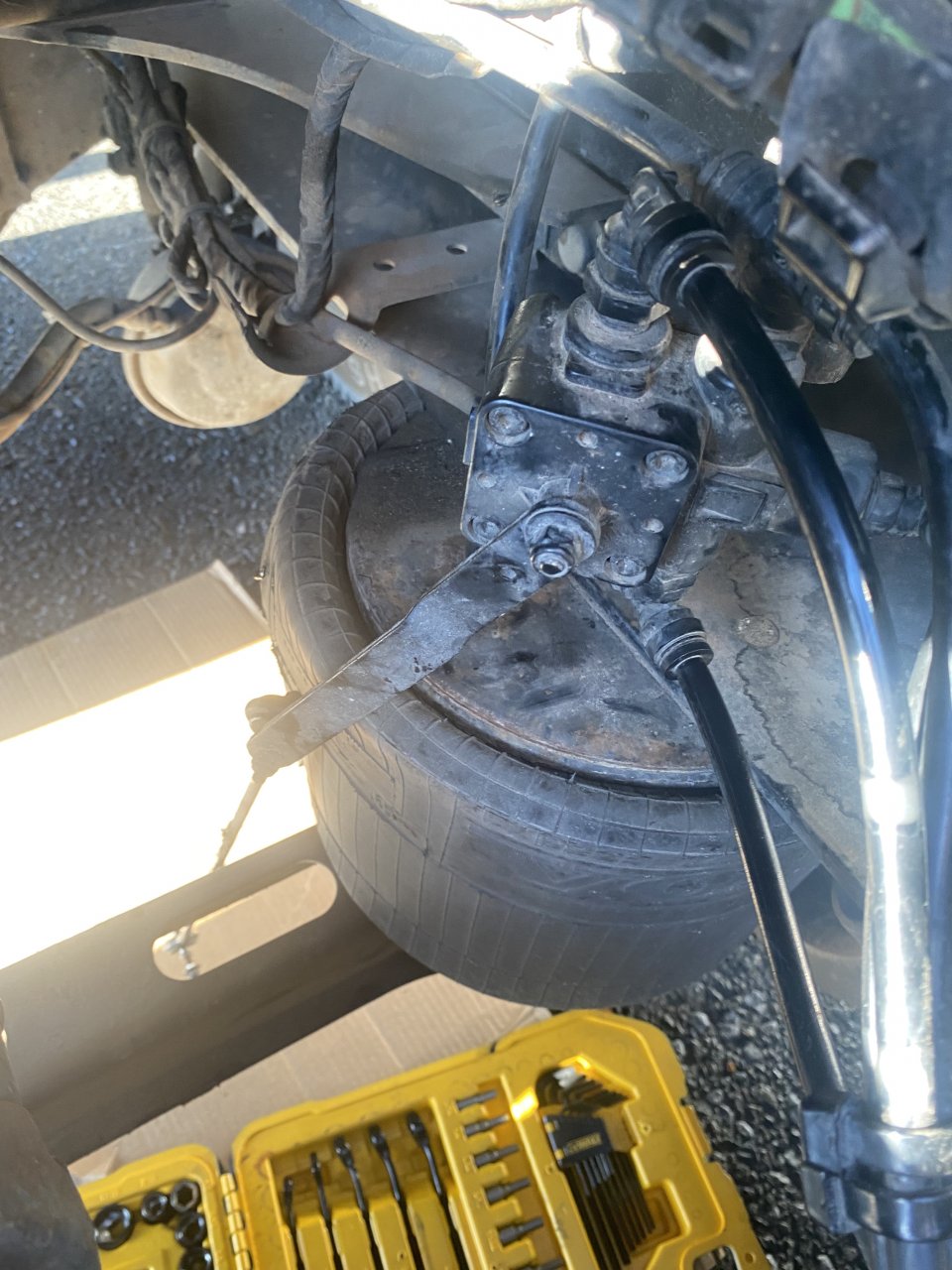

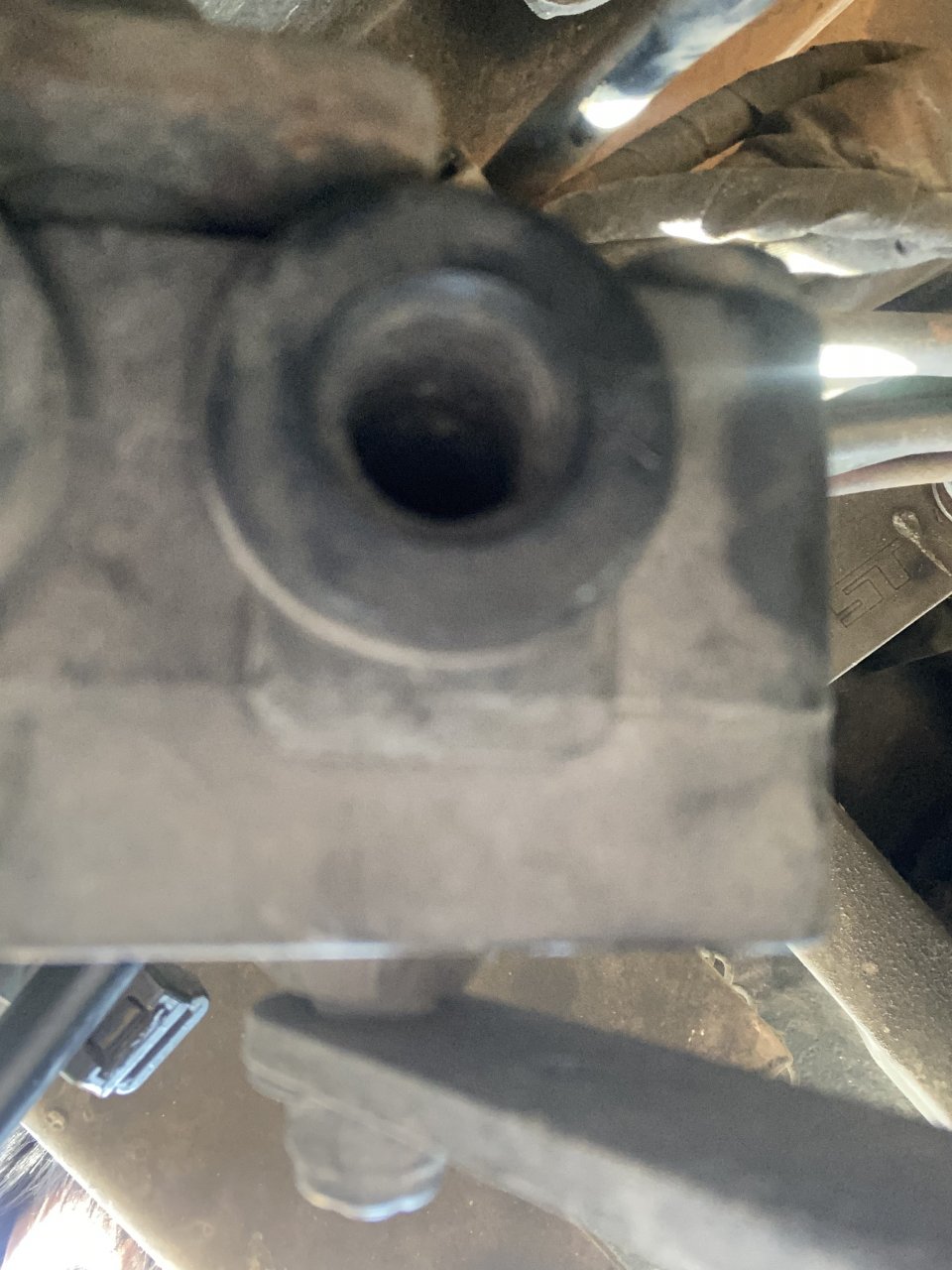

    second picture is general overview of the part. First picture with hole is right underneath the valve. It has teeth to screw in something yet it is wide open and leaks. Is that supposed be like that?


    Attached Files:

    Rideandrepair Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Banker

    Banker Road Train Member

    3,129
    7,875
    Aug 19, 2012
    0

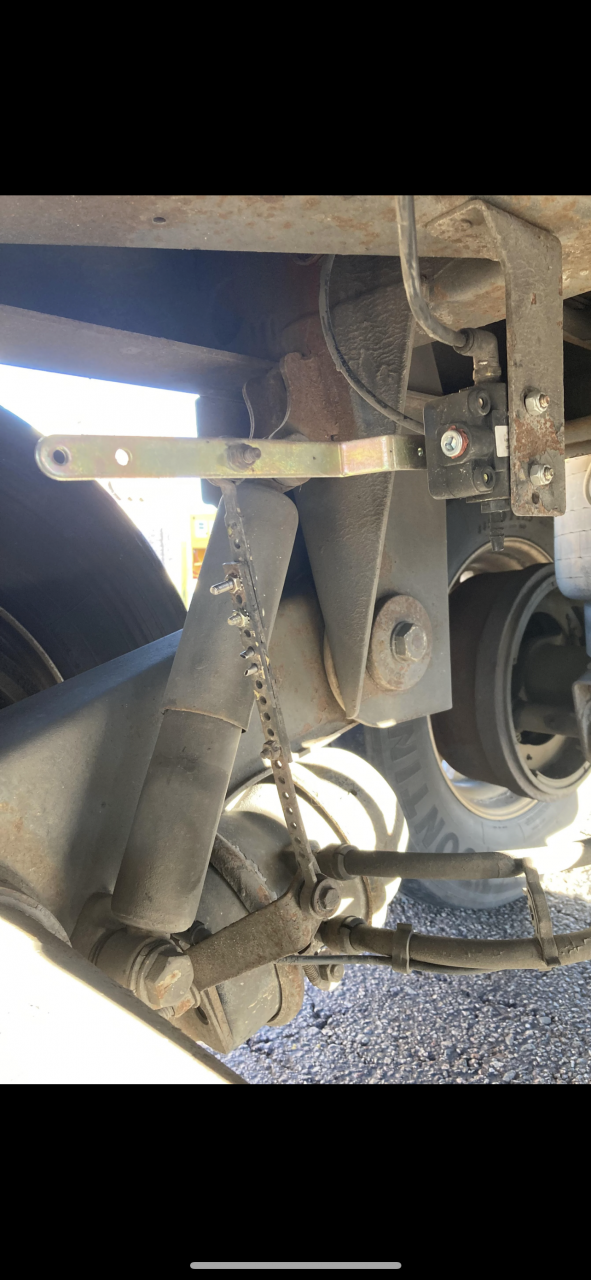

    I am on my phone and don’t have the best view of your picture, but what I can see looks like the arm for your leveling valve hanging down. It should be connected somewhere. This is a generic picture of a leveling valve.

  4. lester

    lester Road Train Member

    2,281
    5,663
    Jan 2, 2012
    NW, Iowa
    0
    Yes that is leveling valve, that open port is probably just the exhaust port. Leveling balve adjust the air in your air bags with that arm that sticks out. If the arm goes down in sends air to bags. If the arm goes up it exhaust air out. When arm is in the middle it just holds pressure. So when you put a heavy load on it puts more pressure in to keep truck at same height. Get it? It keeps the truck level, so to speak

  5. Forever237

    Forever237 Light Load Member

    105
    47
    May 29, 2016
    0
    I detached the arm off, the bottom bolt. Thats why it looks twisted.

    Banker, D.Tibbitt and Rideandrepair Thank this.
  6. D.Tibbitt

    D.Tibbitt Road Train Member

    17,063
    111,634
    Apr 26, 2013
    Gettin' down westbound
    0
    If it is exhausting air out of that port then replace the entire valve. Even the monkeys at the ta shop can do that one. Just make sure they don't put it on backwards. .

    86scotty and 77fib77 Thank this.
  7. supergreatguy

    supergreatguy Heavy Load Member

    955
    2,602
    Nov 26, 2020
    0
    yes

    D.Tibbitt Thanks this.
  8. Forever237

    Forever237 Light Load Member

    105
    47
    May 29, 2016
    0
    It was exhausting air from that port. I changed the leveling valve and airdryer is still purging like before (every 45 seconds like a clockwork). And when I go downhill it stops purging and inflates the airtanks to 145 psi until Safety Valve cuts off. At this point I don’t wtf is wrong with my truck.

  9. 86scotty

    86scotty Road Train Member

    3,417
    8,527
    Aug 27, 2017
    Appalachia
    0
    You might not have needed to change your leveling valve. Some are slow and they will hiss (purge air) for a couple of minutes after you stop until they settle. Your tractor AND trailer have one, which you might know already. My tractor one went bad this past year. They only replacement I could find is really slow to settle and it drives me nuts because it hisses/purges for a couple of minutes sometimes after I stop.

    The open port on your old leveling valve is supposed to be that way. That's the exhaust.

    BoostedTeg Thanks this.
  10. AModelCat

    AModelCat Road Train Member

    25,199
    128,090
    Jul 7, 2015
    Canuckistan
    0
    Think of it like this:

    That levelling valve is mounted to the frame and the arm attaches to the axle somewhere. The goal of the levelling valve is to keep that arm level. It does this by adding or removing air from the suspension air bags. Its how it maintains the truck's ride height.

    When the arm is sloping upward from the valve, it wants to fill the air bags (inflate the suspension) in order to bring the arm back to its neutral (level) position. When the arm slopes downwards from the valve the suspension is over-inflated and it will be exhausting air to bring the ride height back down. The valve will be inflating/exhausting air all day long when driving. Some react slower and you'll hear them inflate or exhaust air for a little while after stopping. If its constantly leaking out the exhaust port non-stop, its likely the levelling valve has failed.

  11. Catmando

    Catmando Road Train Member

    3,465
    15,088
    Mar 15, 2021
    Iowa
    0
    Not that this has anything to do with your drier purging
    But since you changed your ride height valve did you make sure it was adjusted correctly for the correct ride height ?
    Cause you'll have more issues if it's not a the correct height
