What kind of ac compressor is this, need to replace it? (pics)

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by nikmirbre, May 26, 2022.

  1. nikmirbre

    nikmirbre Road Train Member

    5,034
    8,644
    Jul 27, 2011
    High Point NC
    0
    Yeah its under the compressor and cant get to it.

    cke and buddyd157 Thank this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. buddyd157

    buddyd157 Road Train Member

    13,439
    34,298
    May 25, 2017
    under a shade tree
    0
    actually, that nut in the center of the pulley once removed, and a puller is used, it comes off and no freon escapes. a shop can/should be able to switch that out in under 1 hour, not including the time you have to wait for the job to even get started.

    beastr123 Thanks this.
  4. nikmirbre

    nikmirbre Road Train Member

    5,034
    8,644
    Jul 27, 2011
    High Point NC
    0
    you mean just replace the clutch?

    cke and beastr123 Thank this.
  5. buddyd157

    buddyd157 Road Train Member

    13,439
    34,298
    May 25, 2017
    under a shade tree
    0
    i do not see anything out of the usual for that clutch to not be working. i surmise you checked all the fuses, and relays and such?

    many times, i'd see rust dust to indicate a bad clutch. also check the wiring to the clutch, it could just be corroded at the connecting plug

    beastr123 Thanks this.
  6. buddyd157

    buddyd157 Road Train Member

    13,439
    34,298
    May 25, 2017
    under a shade tree
    0
    yeah, if the clutch went "kaput", that's just a simple replacement, maybe about $100 to $150, over say maybe a $400 compressor, then labor, then recharging the system.

    nikmirbre Thanks this.
  7. nikmirbre

    nikmirbre Road Train Member

    5,034
    8,644
    Jul 27, 2011
    High Point NC
    0
    Yeah I had given that some thought....... If I can find the clutch and it last me a month or so until vacation time that'd be great, I can replace that myself.

    cke, D.Tibbitt and buddyd157 Thank this.
  8. buddyd157

    buddyd157 Road Train Member

    13,439
    34,298
    May 25, 2017
    under a shade tree
    0
    but the clutch, is "pressed onto" the shaft.. you or a mechanic will need a pulley-puller, to remove it, and to re-install the new one. never hammer it back on, never use a crowbar or screw drivers to pry it off

    nikmirbre Thanks this.
  9. buddyd157

    buddyd157 Road Train Member

    13,439
    34,298
    May 25, 2017
    under a shade tree
    0
    if you can locate a new clutch at say AutoZone, NAPA,, whatever, they rent tools.

    nikmirbre Thanks this.
  10. nikmirbre

    nikmirbre Road Train Member

    5,034
    8,644
    Jul 27, 2011
    High Point NC
    0

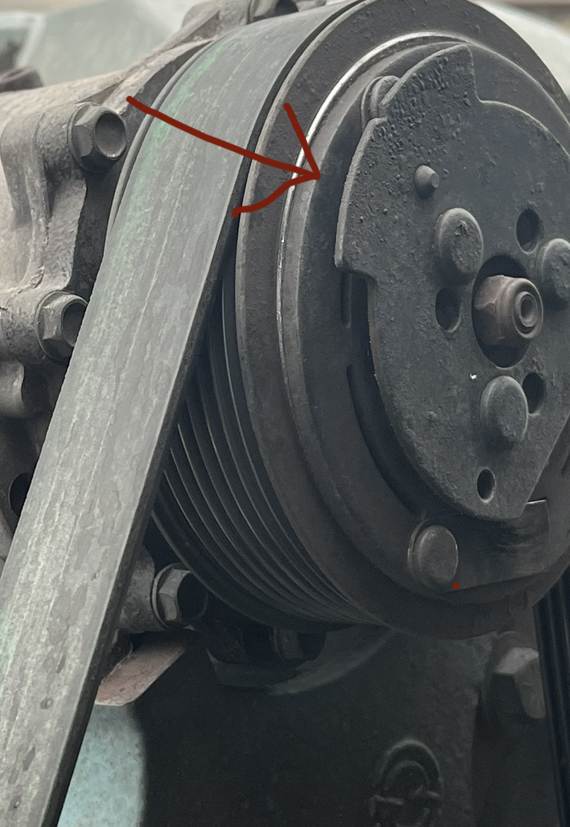

    On that 1st picture look at the front........ the little inner ring is loose
