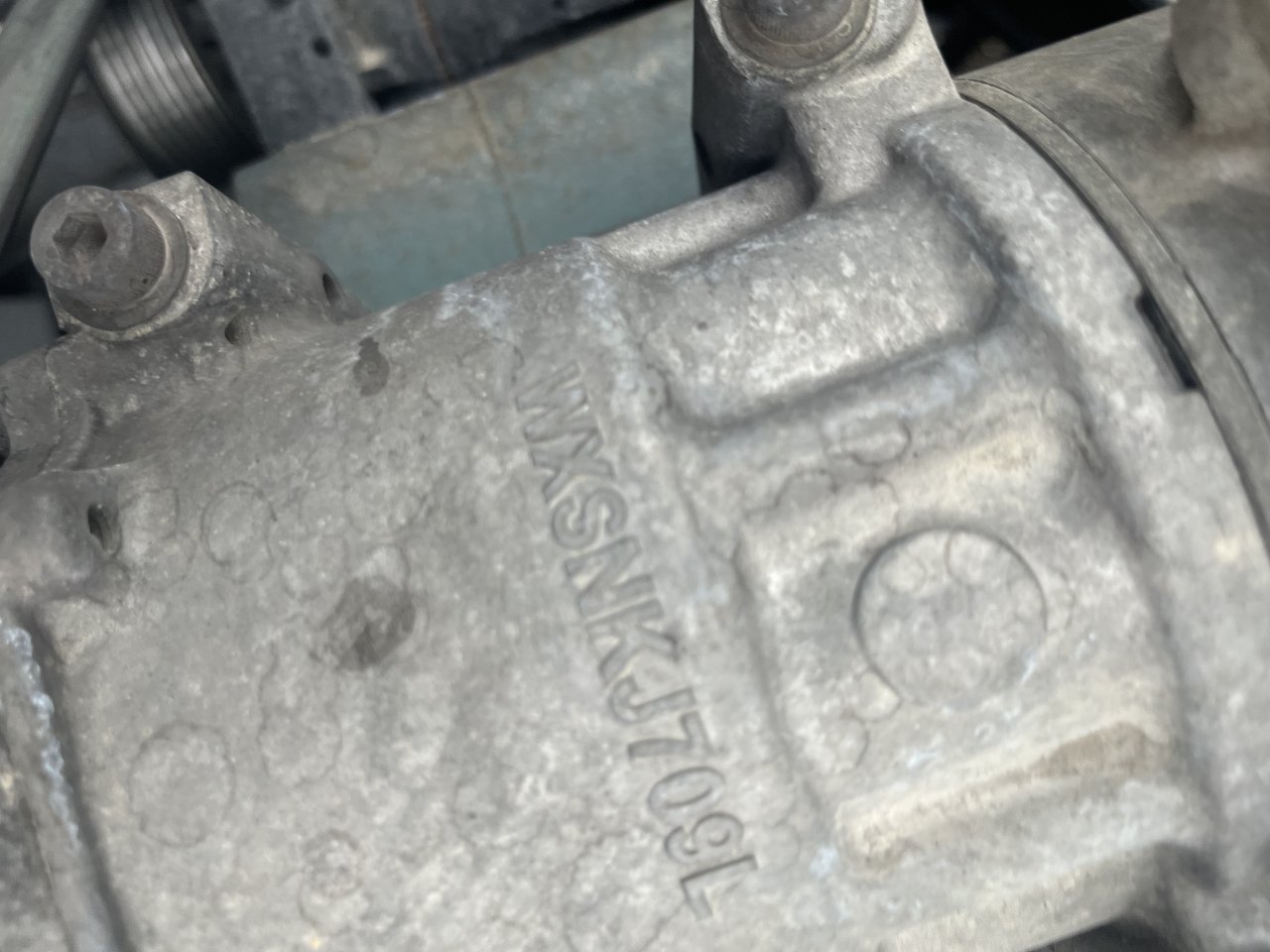

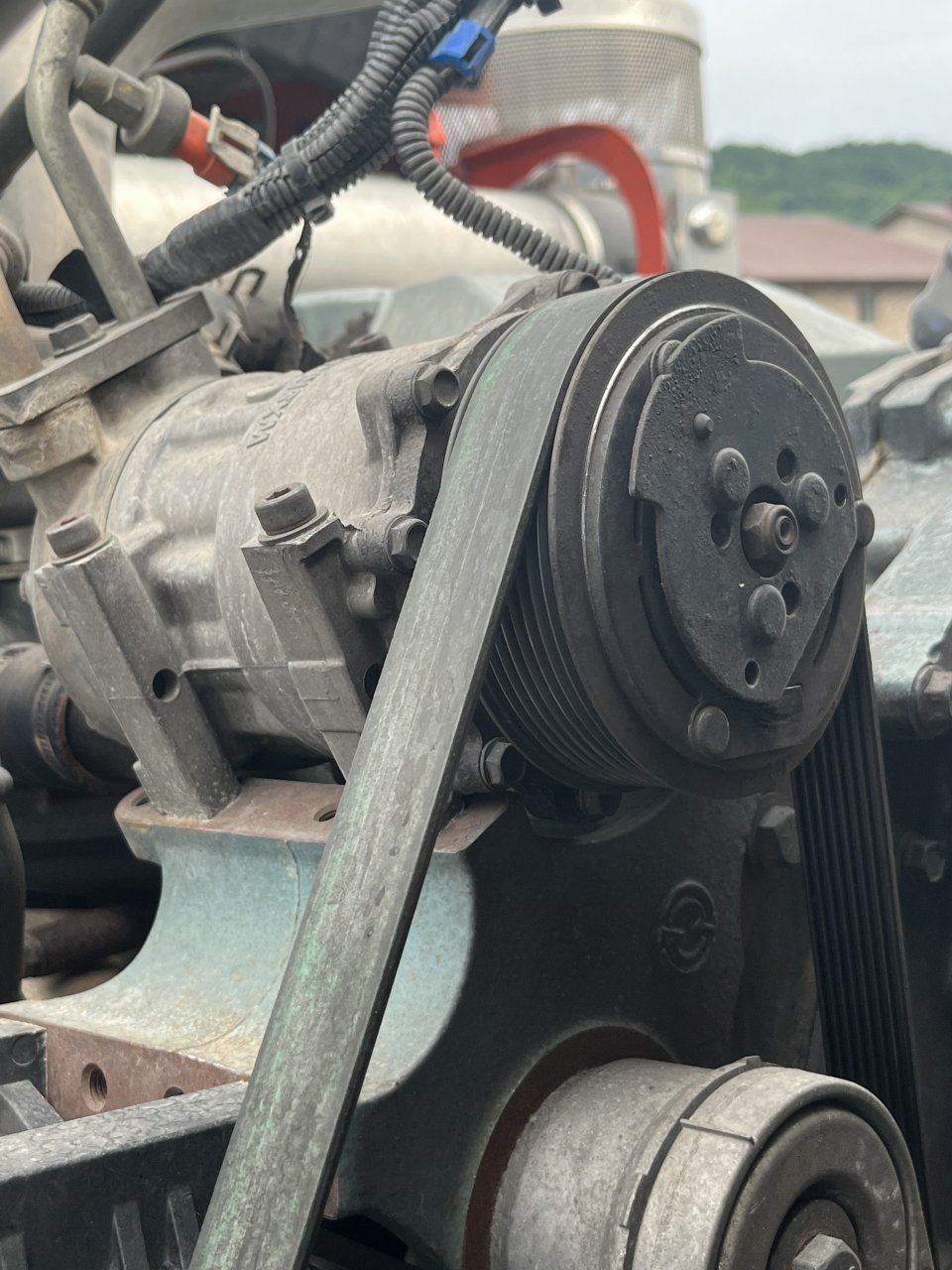

What kind of ac compressor is this, need to replace it? (pics)

TruckerAC - Compressors

Call the guy on that site, email the pics. He'll tell you exactly what you need

Did that changing from york to sanden, 5 years later couldnt find the part number. He found the invoice in 5 minutes and had the compressor shipped in another hour.

Warning, on some of those sandens, the clutch isnt serviceable, gotta replace compressor too, but if you have the new compressor, even a car ac place can get you going again in less than 4 hrs



It’s probably a Chinese Sanden knockoff. They’re supposed to be almost as good, and 2/3 the price. There’s a couple that will work. The one I got is the best. I’ll look up the # for you. I got mine at Truckpro. It was $240, has lasted a few yrs already. Not worth changing the clutch on a Sanden. The cost, and the proper shimming makes it a waste of time, and money. I’ll look up my #, it’s the same as yours, except it’s a new design with a fused clutch. If it ever seizes up the fuse blows, and the pulley still operates as an idler. No need to short belt the alternator, which is hard to do on a pad mount. Costs about $50 more, but worth it IMO, as I’ve had to short belt mine before. Real pain, belt has to fit exactly, shimming with washers, etc.



Will fitgerald be helpful if called ?!

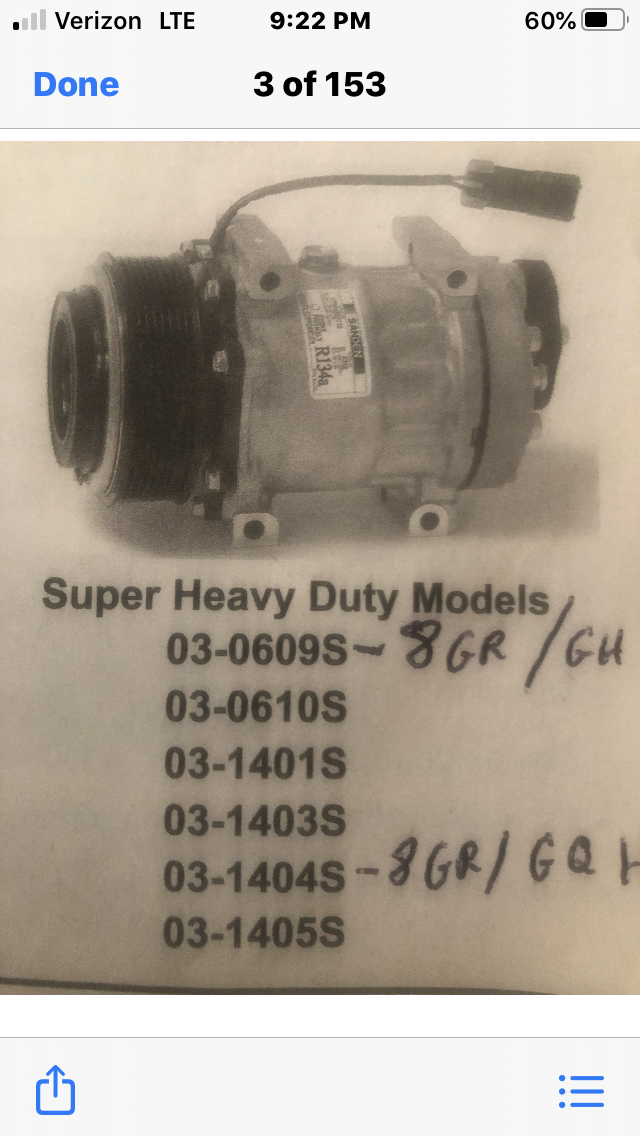

Here’s the one to get. 03-0609S. Freightliner Carries a similar one. It has a shiny clutch, doesn’t have the fused clutch feature. It’s a very common compressor. Usually in stock at Freightliner. This ones not so common, worth ordering it if you can. It’s available from Truckpro. Sometimes in stock. Check the plug, I can’t see what type yours is. The lines, pad mount, and 8 groove clutch are the same as yours. Plug adapters are available, as long as you have 2 wires, you can splice yours in if needed.



Did anyone else notice the line connections to the compressor? I do not remember those on anything other than some Petes. I could not get the line I needed. Swapped the compressor to one with standard fittings and had the hoses made.
