Where can I get this elbow for the exhaust side of turbo?

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Cam Roberts, Jul 15, 2018.

Page 1 of 2
  1. Jul 15, 2018 #1
    Cam Roberts

    Cam Roberts Road Train Member

    1,621
    1,938
    May 13, 2018
    0

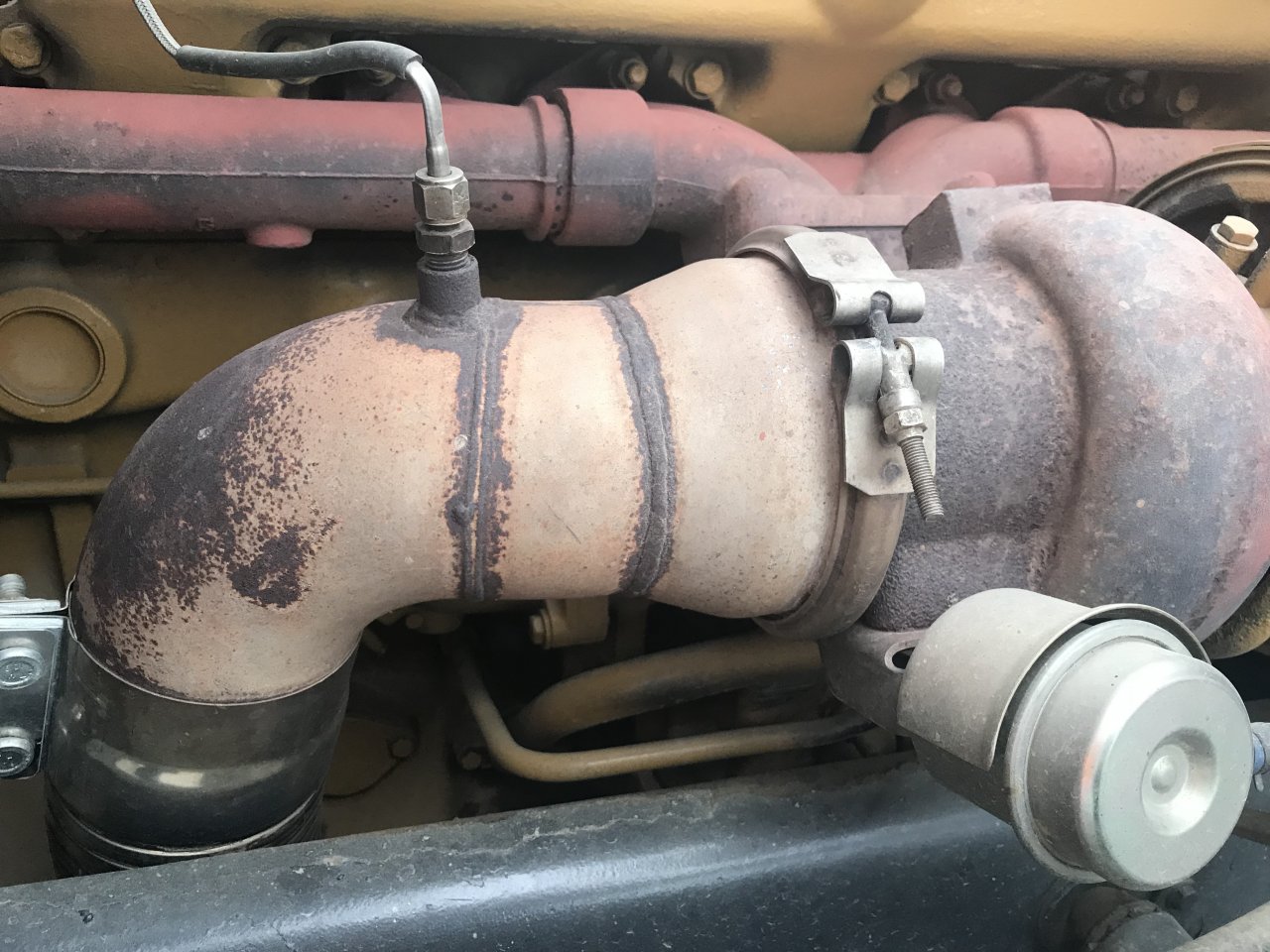

    72253D8F-FD14-414D-B374-36C206666F5F.jpeg this is a 5 inch reduced down to 4” so it can fit in between frame and block. I want a 5” in and 5” our elbow with egt bung hole. Can’t find one anywhere. Except for a high dollar 400 dollar one

    Cam Roberts, Jul 15, 2018
    Cam Roberts, Jul 15, 2018
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Jul 15, 2018 #2
    wore out

    wore out Numbered Classic

    15,845
    191,663
    Jun 5, 2013
    CHASIN THE DEVIL'S HERD
    0
    Usually truck pro or fleetpride.

    wore out, Jul 15, 2018
    wore out, Jul 15, 2018
    #2
    Oxbow, SAR and justa_driver Thank this.
  4. Jul 15, 2018 #3
    spsauerland

    spsauerland Road Train Member

    4,296
    10,887
    May 31, 2010
    West Harrison, In
    0
    You check thru Grand Rock exhaust catalog?

    spsauerland, Jul 15, 2018
    spsauerland, Jul 15, 2018
    #3
    Oxbow, SAR, Cam Roberts and 1 other person Thank this.
  5. Jul 15, 2018 #4
    justa_driver

    justa_driver Road Train Member

    1,105
    817
    Apr 2, 2014
    Tennessee
    0
    Maybe a truck dealer, Caterpillar, or truck scrap yard in your area?

    justa_driver, Jul 15, 2018
    justa_driver, Jul 15, 2018
    #4
  7. Jul 15, 2018 #5
    mslashbar

    mslashbar Medium Load Member

    600
    804
    Jul 22, 2009
    elizabeth,co
    0
    On a older 379 Pete with a cat you just have to buy the 5" elbow and then take a big sledge hammer and flatten it out to clear the frame rail.

    mslashbar, Jul 15, 2018
    mslashbar, Jul 15, 2018
    #5
    mtoo, Oxbow and Cam Roberts Thank this.
  8. Jul 15, 2018 #6
    Goodysnap

    Goodysnap Road Train Member

    3,716
    9,022
    Jul 12, 2017
    0
    If your handy with a mig you could probably make one with a 5" flange and a couple 45 OD elbows. Put it right where you want it. The bung could be reused from your old pipe.

    I've had good luck with cold galvanizing compound or barbecue paint on exhaust stuff. Make sure you coat the welds with something or they will rust up quicker than a Chinese brake rotor.

    Last edited: Jul 15, 2018
    Goodysnap, Jul 15, 2018
    Goodysnap, Jul 15, 2018
    #6
    Oxbow, Oldironfan, Expeditor and 3 others Thank this.
  9. Jul 25, 2018 #7
    Cam Roberts

    Cam Roberts Road Train Member

    1,621
    1,938
    May 13, 2018
    0
    any reason why this one wont work? i searched for peterbilt 379 with c15 to see how they routed it and it uses the same style bend to get it down the frame on the inside. For whatever reason peterbilt cheaped out and necked it to 4" for c12. C15 looks to be 5" all the way through. Any reson why the c15 elbow wont fit up on my c12? click link below thanks
    For Sale | VanderHaags.com

    Cam Roberts, Jul 25, 2018
    Cam Roberts, Jul 25, 2018
    #7
  10. Jul 25, 2018 #8
    Cam Roberts

    Cam Roberts Road Train Member

    1,621
    1,938
    May 13, 2018
    0
    Any reason the c15 elbow from grand rock wont work on my c12?
    For Sale | VanderHaags.com

    Cam Roberts, Jul 25, 2018
    Cam Roberts, Jul 25, 2018
    #8
  11. Jul 25, 2018 #9
    Goodysnap

    Goodysnap Road Train Member

    3,716
    9,022
    Jul 12, 2017
    0
    Can I ask why you feel the need to go bigger? The 4 inch is plenty for the C12 displacement IMO. Even the 15 liters of today are only 4" out at the turbo. If it's more power/torque your after I doubt you'll notice a change. Not trying to change your mind, just thinking out loud.

    Goodysnap, Jul 25, 2018
    Goodysnap, Jul 25, 2018
    #9
    Oxbow, Oldironfan and tony97905 Thank this.
  12. Jul 25, 2018 #10
    Cam Roberts

    Cam Roberts Road Train Member

    1,621
    1,938
    May 13, 2018
    0
    oh yeah thats a reasonable question and i would ask the same thing. Heres whats going on. I installed dual 6" miter cut straight pipes on my 379. I work with 2 other guys that run the same setup with c12. One guy runs a t800 kenworth and the other guy runs a 357 peterbilt. Their trucks have a much more noticeable deep throaty sound to them on mine and its noticeable. Mine has a bit of raspy sound to it. I like the sound of the deeper sound and its easier on the ears but a good sound. We narrowed it down to having it being necked down the way it is. going from 5 off the turb, then down to 5 after the frame and then to 6 inch pipes. This whole thing may sound silly to some people but you can understand im sure. Smaller pipe off the turbo is gonna create the raspiness

    Cam Roberts, Jul 25, 2018
    Cam Roberts, Jul 25, 2018
    #10
    Goodysnap Thanks this.
