Which A/C oil? 2000 W900

Discussion in 'Trucks [ Eighteen Wheelers ]' started by snowman_w900, Sep 15, 2018.

  1. snowman_w900

    snowman_w900 Road Train Member

    4,418
    81,024
    Nov 25, 2010
    0
    So I've decided to replace the evaporator coil and exspansion valve. It's on my 2000 W900, but it still has the York style compressor. Obviously its 134a. Question is, someone said its prolly gonna have ester oil in it they thought because of the York compressor.

    Then I got another opinion saying PAG 100 would be fine. What would the experts say to add? Should I use a ester oil or would PAG be ok?

    Oxbow and SAR Thank this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. spsauerland

    spsauerland Road Train Member

    4,296
    10,887
    May 31, 2010
    West Harrison, In
    0
    Usually PAG 100 in York/T CCI compressors.

    Oxbow, BoxCarKidd, SAR and 1 other person Thank this.
  4. snowman_w900

    snowman_w900 Road Train Member

    4,418
    81,024
    Nov 25, 2010
    0
    I have some sanden SP-15 and I'm told its basically PAG100 repackaged.

    However, I was gonna pick up some PAG 100 anyways after talkin to an old army buddy (@wore out ). I dont know why someone would say ester oil in it unless they were thinking R-12?

    I just wanted to see if I was close in my thinking.

    Thank you to all you guys for the confirmation .

    Oxbow, SAR and wore out Thank this.
  5. snowman_w900

    snowman_w900 Road Train Member

    4,418
    81,024
    Nov 25, 2010
    0
    Heres what I went an got. Should do the trick.

    Last edited: Sep 15, 2018
    spsauerland, Oxbow, SAR and 1 other person Thank this.
  6. Heavyd

    Heavyd Road Train Member

    7,773
    6,210
    Feb 4, 2009
    0
    Always always always use the oil that is recommended for the compressor. The rest of the system doesn't care about what type of oil.

    Expeditor, Goodysnap, Oxbow and 6 others Thank this.
  7. BoxCarKidd

    BoxCarKidd Road Train Member

    4,470
    6,507
    Aug 26, 2014
    0
    While we are on the subject please allow me to through in some questions and provide some information to the best of my understanding. My first A/C certification was around 1985 and sometimes I need some updating.
    When R134 came into play retro fit kits came on the market and everyone used them. The oil provided in those kits was labeled for use in all systems. Also compatible with small amounts of any other residual oil. I skipped the kits and have used that type synthetic oil every since by the quart. Last time I ordered it I was told they do not carry that anymore. Ended up with PAG 100, not synthetic.
    I worked on a small bus with three evaporators and two compressors. It had a tag for a GM oil on one system and a Ford oil in the other. I know but it was on the tag with the spec for the oil?
    Put a reman compressor on my JD 4240 last year. It says use only 525 mineral oil. Is there such a thing as a universal refrigerate oil?
    I see Heavyd has answered my question before I asked but I will finish anyway. It may help someone else or I may get some more good information.
    Piston compressors, Yoke and Tecumseh, has a plug in the side of them. They hold a good bit of oil and should have about an 1 5/8 of oil in the bottom of them. They can be dipsticked by taking a tye strap and putting a small bend in it about every inch making it into a long C. It maybe necessary to turn the crankshaft for clearance. I usually do not add oil to them but check it.
    If you replace a rotary compressor there is no way to know how much oil is in the system unless you empty it. Flush the entire system. Take that new or reman compressor and stand it up so you can rotate the crank and drain all the oil out of it. I have found them everywhere from a complete oil charge to none. Then add the correct amount.

    Oxbow, snowman_w900 and spsauerland Thank this.
  8. snowman_w900

    snowman_w900 Road Train Member

    4,418
    81,024
    Nov 25, 2010
    0

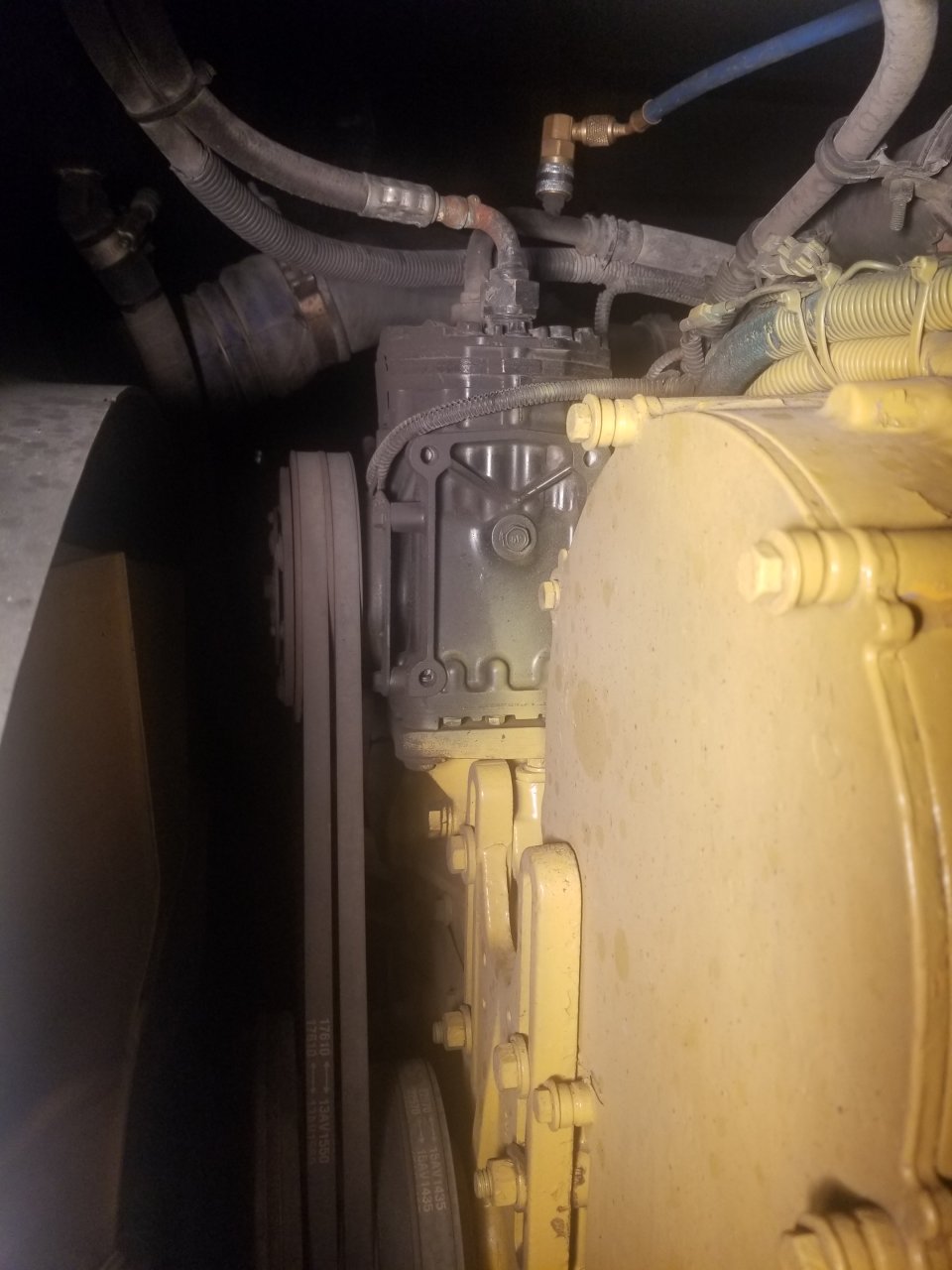

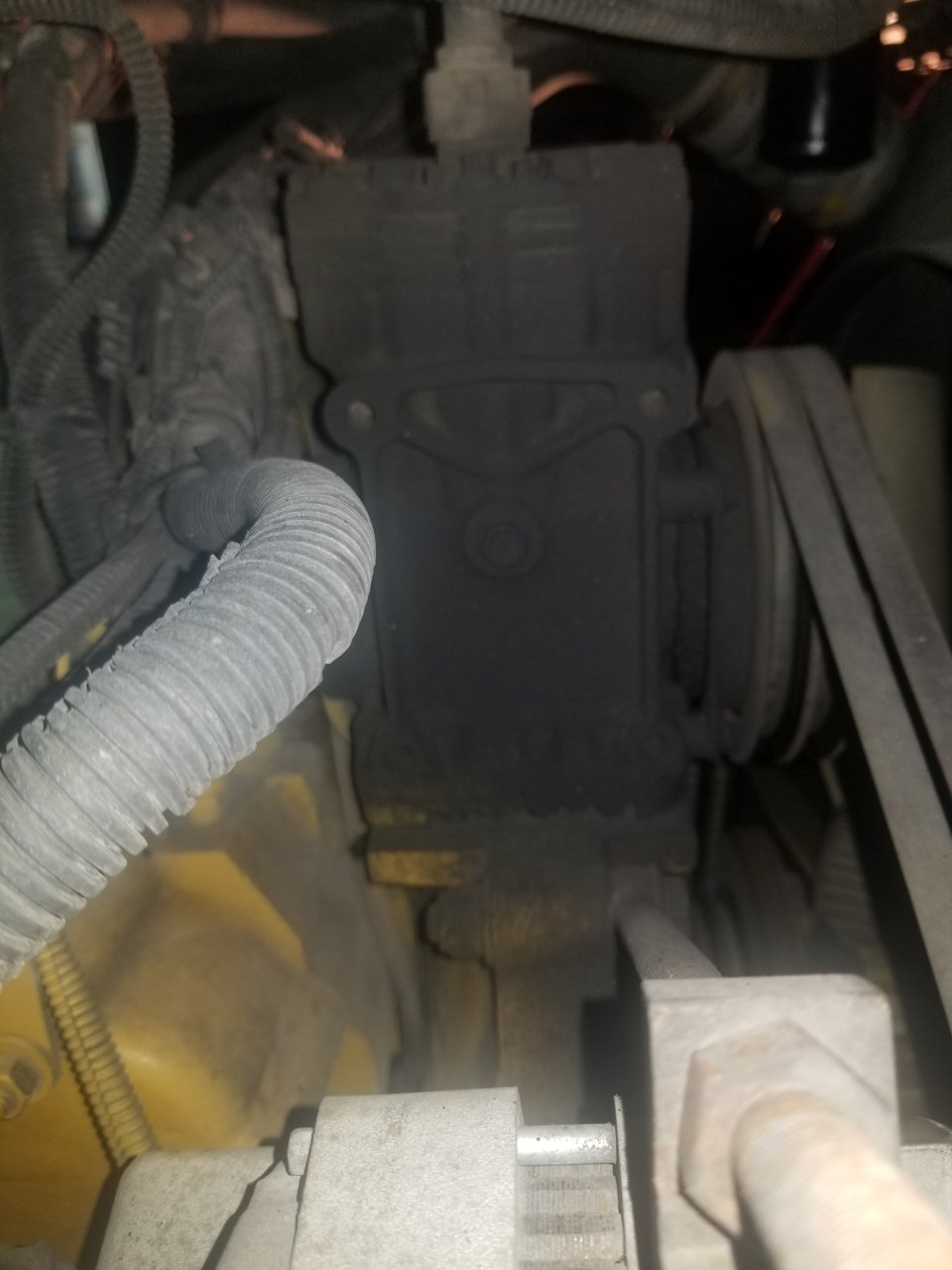

    Thanks guys. @BoxCarKidd , are these the side plugs you are referring to to check the oil on the Yoke style compressor?


    Oxbow, SAR and wore out Thank this.
  9. wore out

    wore out Numbered Classic

    15,926
    192,756
    Jun 5, 2013
    CHASIN THE DEVIL'S HERD
    0
    Oxbow, BoxCarKidd, SAR and 1 other person Thank this.
  10. snowman_w900

    snowman_w900 Road Train Member

    4,418
    81,024
    Nov 25, 2010
    0
    Also, since we are on the oil subject, what's the preferred way to put oil in the system other than using a machine?

    I'm just using a set of gauges, vacuum pump and scale for this project. I replaced the bunk evaporator coil, flushed the front evaporator coil (cab), lines. Replaced both exspansion valves, drier and condenser.

    I did not remove the compressor on this project.

    Last edited: Sep 15, 2018
    Oxbow and SAR Thank this.
