Air bags not inflating?? Randomly ??

Discussion in 'Ask An Owner Operator' started by Humbretrucking, Mar 2, 2021.

  1. Humbretrucking

    Humbretrucking Light Load Member

    71
    60
    Sep 23, 2020
    0
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. baha

    baha Road Train Member

    3,644
    2,197
    Jul 25, 2013
    ga
    0
    Sounds like you need to replace the tractor air ride leveling valve with a new one not rebuilt before the next time you dump the air out and it will not air up ever again!

  4. Humbretrucking

    Humbretrucking Light Load Member

    71
    60
    Sep 23, 2020
    0
    Any idea on cost ?

  5. Humbretrucking

    Humbretrucking Light Load Member

    71
    60
    Sep 23, 2020
    0
    Keep in mind I’m not talking about the cab air bags.. I mean the four big air bags on tractor frame.

  6. Dave1837

    Dave1837 Medium Load Member

    661
    1,723
    Nov 16, 2019
    Pennsylvania
    0
    Replace the leveling valve or unbolt it and move it manually

    Humbretrucking and staceydude Thank this.
  7. staceydude

    staceydude Medium Load Member

    372
    1,126
    Apr 3, 2020
    0
    What kind of truck is it?

    My 379 has a leveling valve and a pilot valve. I replaced both, the leveling valve was pretty trashed and I replaced it, The pilot valve was the real problem in the air bags not inflating. When you dump your air bags this is part of that system. One days it worked great, next day no air.

    Leveling valve cost about $70-80
    Pilot valve is $30-$40

    Easy replacement yourself, just make sure new leveling valve is adjusted the same as old one.

    Peterbilt wanted almost $400 for leveling valve... truck pro $79... really hard to find stuff not made In China now. Peterbilt parts
    had no idea what the pilot valve was...

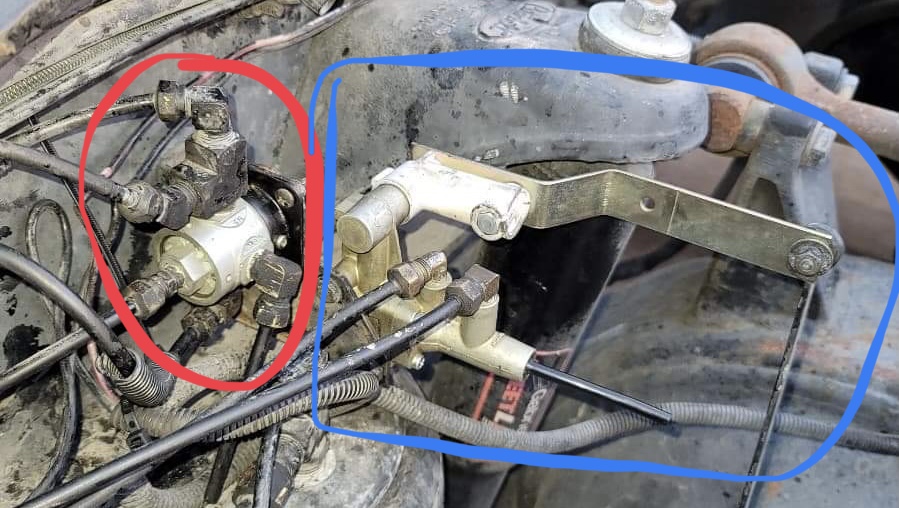

    Pilot valve in red, Leveling valve blue circle. Your truck may not have a pilot valve.


  8. Socal Xpress

    Socal Xpress Road Train Member

    1,699
    1,699
    Dec 6, 2014
    Los Angeles, Ca
    0
    Year model make. Basic information is needed in order to help.

    lester Thanks this.
  9. Humbretrucking

    Humbretrucking Light Load Member

    71
    60
    Sep 23, 2020
    0
    My truck is a international prostar
    2014 international prostar ..

  10. 062

    062 Road Train Member

    4,457
    8,786
    Oct 20, 2013
    0
  11. Heavyd

    Heavyd Road Train Member

    7,142
    5,297
    Feb 4, 2009
    0
    He PM me, here is my response for everyone else;
    If the suspension dump switch is flashing, there is an error detected in the system. If not, then check the valve and leveling rod to make sure it is attached properly, not broken off or detached at the spring mount. After that, it is basic air checks to see if the valve is getting pressure from the truck and passing it on to the air bags.

    black_dog106 and 062 Thank this.
