Anyone have a nice clear -hoot of 4 batt setup for 379 or diagram?

Discussion in 'Peterbilt Forum' started by staceydude, Jan 22, 2021.

  1. staceydude

    staceydude Road Train Member

    Joined:
    Apr 3, 2020
    Messages:
    1,145
    Thanks Received:
    4,988
    0
    Working on converting my 94 to a 4 batt setup.

    anyone have a picture or diagram I can look over so I don’t Jack it up.

    thanks

    Coolbreezin and blairandgretchen Thank this.
  2. 062

    062 Road Train Member

    Joined:
    Oct 20, 2013
    Messages:
    6,201
    Thanks Received:
    33,404
    0
    It’s really no difference from what you have now. The jumpers basically make it one big battery.
    If yours has all black cables, I recommend you mark all the positive cables in some way.

  3. blairandgretchen

    blairandgretchen Road Train Member

    Joined:
    Dec 9, 2011
    Messages:
    13,376
    Thanks Received:
    71,892
    Location:
    South west Missouri
    0
    Paint marker pens.

  4. AModelCat

    AModelCat Road Train Member

    Joined:
    Jul 7, 2015
    Messages:
    29,146
    Thanks Received:
    158,384
    Location:
    Canuckistan
    0
    I do coloured zip ties through the eye of the terminals. Everything that came off a post gets tied together.

  5. staceydude

    staceydude Road Train Member

    Joined:
    Apr 3, 2020
    Messages:
    1,145
    Thanks Received:
    4,988
    0
    Looks easy enough now, I have a set of small cables made to add the 4th batt but I don’t like how it fit. I am going to order a set of factory made ones (not Pete brand as I value my money lol)


    God prefers Diesels Thanks this.
  6. 062

    062 Road Train Member

    Joined:
    Oct 20, 2013
    Messages:
    6,201
    Thanks Received:
    33,404
    0

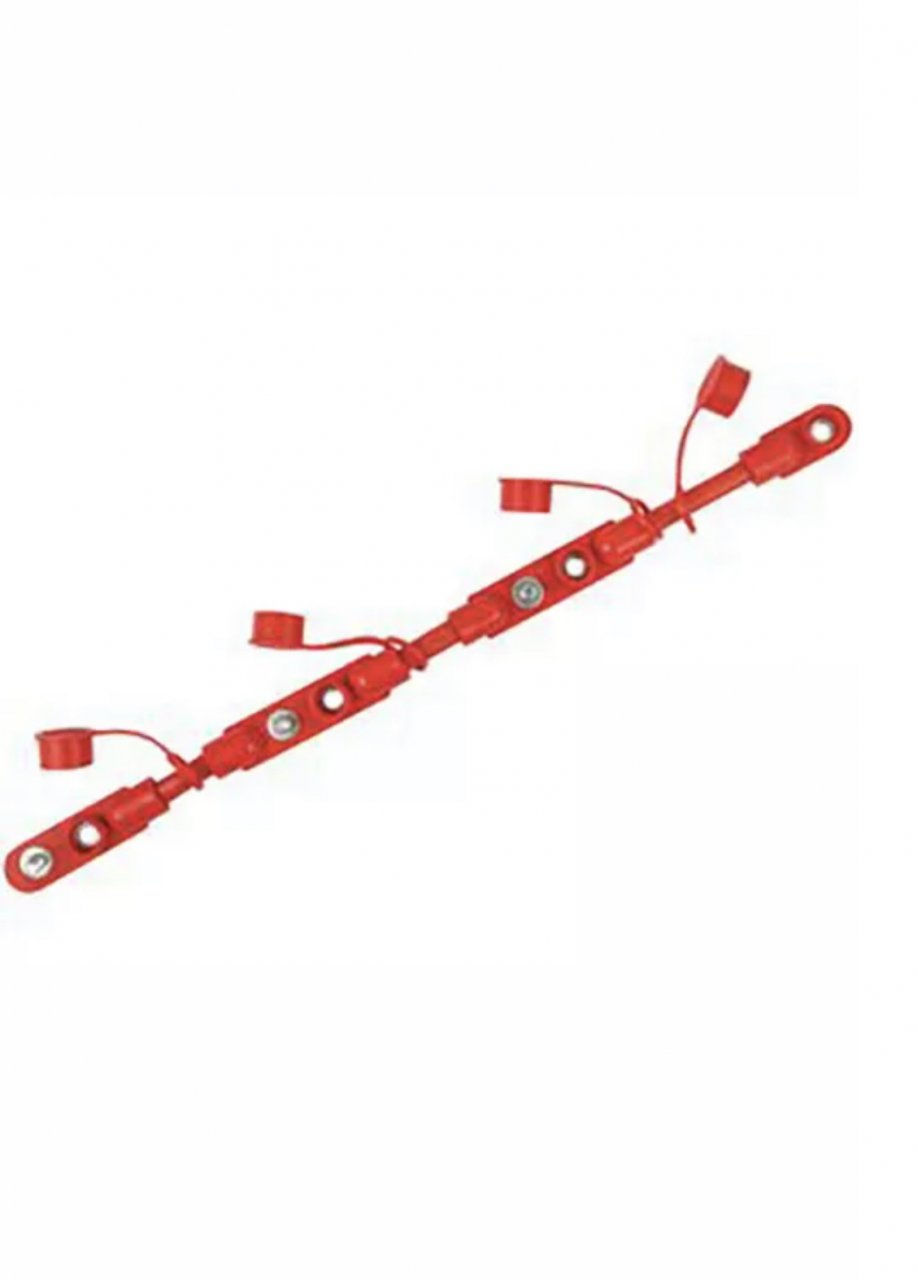

    I don’t really like the one in the pic. If you have a problem with the single jumpers it’s easier to inspect and if one is bad just toss it instead of the whole harness.

    Bean Jr., Roger McG, magoo68 and 2 others Thank this.
  7. God prefers Diesels

    God prefers Diesels Road Train Member

    Joined:
    Jun 26, 2020
    Messages:
    4,198
    Thanks Received:
    22,261
    Location:
    South Texas
    0
    I built my own cables when I put a 12 valve in my Chevy. I just went to Napa and bought some 2/0 cable, and used Fusion terminals like these:
    Fusion Solder Lugs and Terminal Connectors

    Came out nice, and it was easy to do. The terminals are already filled with solder. Just put it in a vice, heat it up, and push the cable in. Done. Add some thick red or black shrink tube as you see fit.

    Dale thompson, Hulld and 062 Thank this.
  8. staceydude

    staceydude Road Train Member

    Joined:
    Apr 3, 2020
    Messages:
    1,145
    Thanks Received:
    4,988
    0
    Those would work pretty nice.


    God prefers Diesels Thanks this.
