Can you replace the end of a coax cable?

Discussion in 'CB Radio Forum' started by Dave1837, May 4, 2021.

  1. Dave1837

    Dave1837 Road Train Member

    Joined:
    Nov 16, 2019
    Messages:
    1,399
    Thanks Received:
    4,344
    Location:
    Pennsylvania
    0
    The ends of the factory coax cable on my truck are split in half, CB still works fine but I was wondering if there was any way to replace just the ends? They're routed through the mirror mounts and really don't want to attempt to replace the entire cable

  2. uncleal13

    uncleal13 Road Train Member

    Joined:
    Apr 9, 2009
    Messages:
    3,797
    Thanks Received:
    6,295
    Location:
    Humboldt, Sk
    0

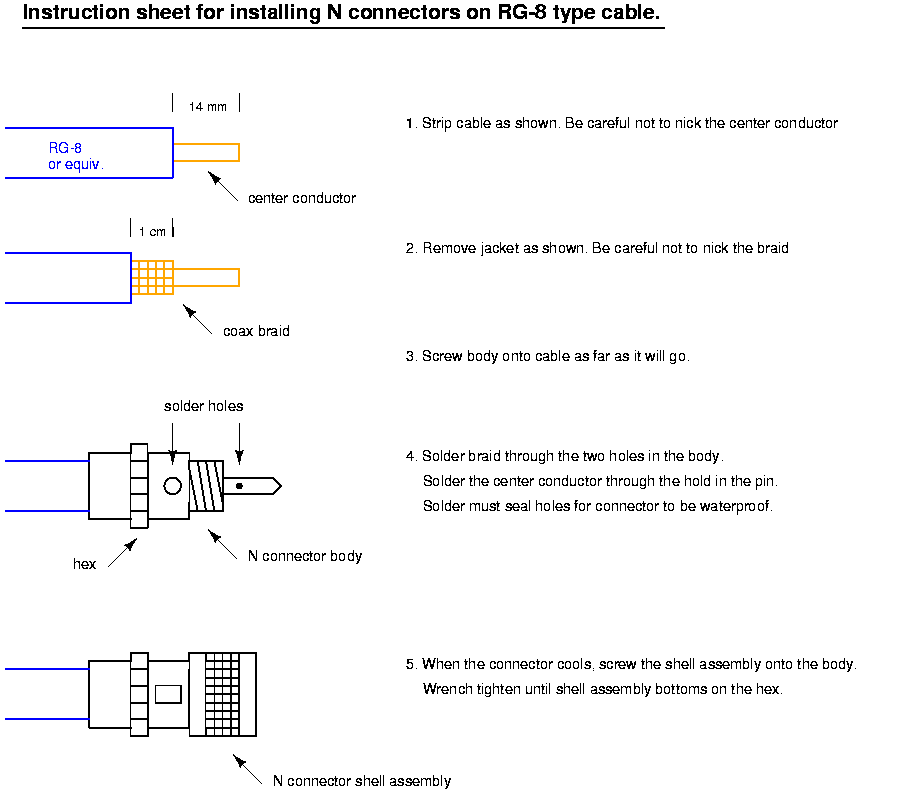

    Yes, I got one off Amazon. They sell either the solder type or the compression type.

    Dave1837 and Rideandrepair Thank this.
  3. Rideandrepair

    Rideandrepair Road Train Member

    Joined:
    Aug 8, 2015
    Messages:
    17,355
    Thanks Received:
    56,303
    0
    They also have screw on type. They work fine. Work exactly like cable tv coax ends. A dab of solder helps an the tip.

    Dave1837 Thanks this.
  4. Dave1837

    Dave1837 Road Train Member

    Joined:
    Nov 16, 2019
    Messages:
    1,399
    Thanks Received:
    4,344
    Location:
    Pennsylvania
    0
    Do I just cut the old end off and slide the new one on? Then solder inside where the wire comes through?

  5. '88K100

    '88K100 Road Train Member

    Joined:
    Aug 23, 2020
    Messages:
    1,323
    Thanks Received:
    2,915
    0
    Try and determine how much you can trim off coax,,,some provide very little extra coax, yes solder the where the wire comes through. If coax has been getting corroded use Silicone Caliper lube, its clear and sticks without bonding;)

    Dave1837 Thanks this.
  6. Dave1837

    Dave1837 Road Train Member

    Joined:
    Nov 16, 2019
    Messages:
    1,399
    Thanks Received:
    4,344
    Location:
    Pennsylvania
    0
    Yeah there's not much extra but I should be able to cut it and still have it reach. Thank you for the info

  7. Timin770

    Timin770 Road Train Member

    Joined:
    May 27, 2011
    Messages:
    1,657
    Thanks Received:
    1,759
    Location:
    Canton, GA
    0
    Youtube has some tutorials

  8. jessejamesdallas

    jessejamesdallas Road Train Member

    Joined:
    Oct 3, 2008
    Messages:
    1,416
    Thanks Received:
    855
    Location:
    Republic of Texas
    0
  9. Lowboy456

    Lowboy456 Light Load Member

    Joined:
    Mar 14, 2017
    Messages:
    278
    Thanks Received:
    128
    0
    I like a butane soldering iron for vehicles.
    You can get one at Home depot.
    Also buy solder wire and flux.
    Use a wet wash cloth to clean the tip regularly.
    When you are done, clean the tip with flux and damp wash cloth and coat the tip with solder.
    The solder tip should always be coated with solder.

    handlebar Thanks this.
  10. Ridgeline

    Ridgeline Road Train Member

    Joined:
    Dec 18, 2011
    Messages:
    22,439
    Thanks Received:
    117,018
    Location:
    Michigan
    0
    You can use a wet paper towel that is heavy duty.

    handlebar Thanks this.
