Fan clutch leaking air with key on

Discussion in 'Trucks [ Eighteen Wheelers ]' started by mitmaks, Oct 23, 2024.

  1. mitmaks

    mitmaks Road Train Member

    2,560
    2,075
    May 16, 2014
    0
    Is the fan clutch supposed to leak air with key on? I've just noticed it today as I was working on the engine bay. 2013 kw t660 ISX 15 engine

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. AModelCat

    AModelCat Road Train Member

    29,222
    159,392
    Jul 7, 2015
    Canuckistan
    0
    I haven't seen a fan clutch yet that does leak air constantly. A quick puff from the solenoid when engaging/disengaging should be it.

    Last edited: Oct 23, 2024
    Rideandrepair, Oxbow and beastr123 Thank this.
  4. lester

    lester Midwest's #1 Feed Hauler

    2,920
    7,890
    Jan 2, 2012
    NW, Iowa
    0
    seals blown if leaking steady

  5. little cat 500

    little cat 500 Road Train Member

    2,054
    1,099
    Jan 17, 2010
    Abbottstown PA
    0
  6. Rideandrepair

    Rideandrepair Road Train Member

    17,344
    56,270
    Aug 8, 2015
    0
    You can probably just put a seal kit in it. If the friction pads are still good.

  7. Iamoverit

    Iamoverit Road Train Member

    2,159
    4,929
    Oct 31, 2023
    0
    I'd get a Horton replacement and be done with it for a long time.

    mitmaks and Rideandrepair Thank this.
  8. D.Tibbitt

    D.Tibbitt Road Train Member

    21,791
    149,019
    Apr 26, 2013
    Gettin' down westbound
    0
    No it not. Get it fixed. Mine was leaking and it finally burned the clutch out and put me on side of the road overheating.

    Rideandrepair Thanks this.
  9. Rideandrepair

    Rideandrepair Road Train Member

    17,344
    56,270
    Aug 8, 2015
    0

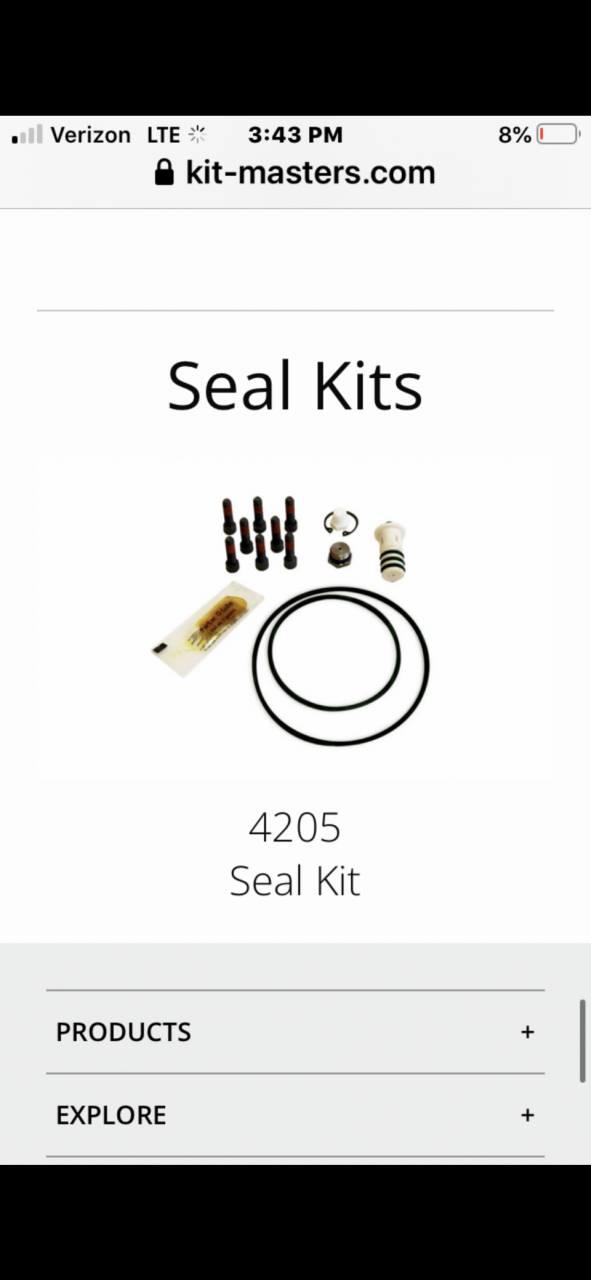

    13CEAE37-B955-47C7-B783-145D4C0882CA.png Hers an example of the mini kit. Usually 2 types of fans. 1 engages and stays engaged when air line is disconnected. Just crimp the line, by folding it over and tape or zip tie. Stops the leak and fan stays engaged always. Other type uses a bolt to lock it in full time till you can get it replaced. Carry a bolt in the glove box. No need to be stranded with either type.

    mitmaks Thanks this.
  10. mitmaks

    mitmaks Road Train Member

    2,560
    2,075
    May 16, 2014
    0
    I have air line supplying air to it. Would I be able to rebuild it myself, clutch kit etc?

    Rideandrepair Thanks this.
  11. mitmaks

    mitmaks Road Train Member

    2,560
    2,075
    May 16, 2014
    0
    How is Horton better? I can get one for my truck

    Rideandrepair Thanks this.
