Leaking oil after clutch replacement. Where is it coming from?

Discussion in 'Ask An Owner Operator' started by 77fib77, Apr 27, 2019.

Page 1 of 13
  1. 77fib77

    77fib77 Road Train Member

    Joined:
    Jul 7, 2010
    Messages:
    10,476
    Thanks Received:
    65,454
    Location:
    St Louis
    0
    I'm dripping oil. I lost a gallon in 24 hours.
    I had a new clutch put in it.

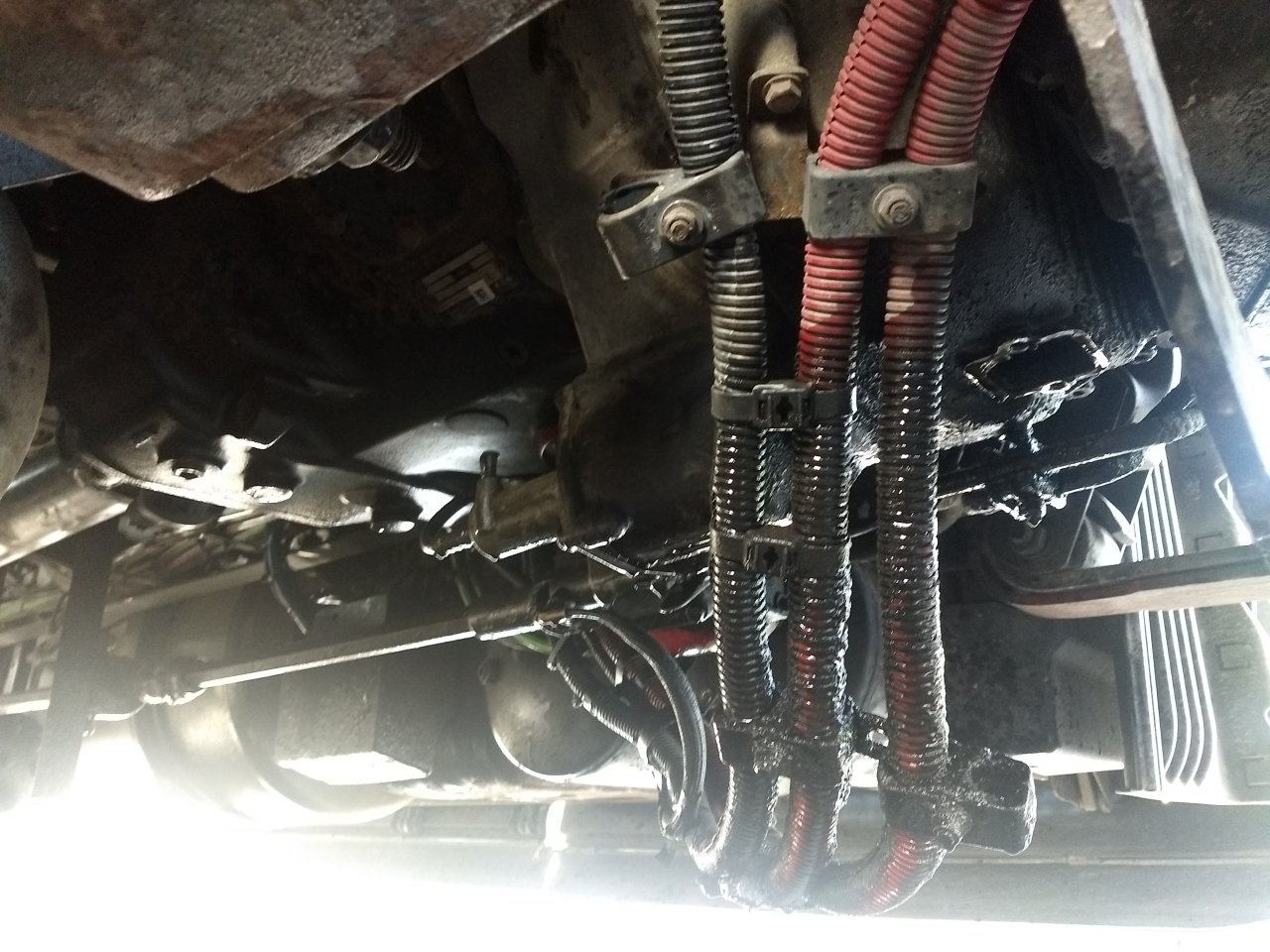

    IMG_20190427_161655327.jpg IMG_20190427_162022600.jpg IMG_20190427_161701643.jpg

    It looks like it's from there.

    77fib77, Apr 27, 2019
    #1
  2. 77fib77

    77fib77 Road Train Member

    Joined:
    Jul 7, 2010
    Messages:
    10,476
    Thanks Received:
    65,454
    Location:
    St Louis
    0

    77fib77, Apr 27, 2019
    #2
  3. PE_T

    PE_T Road Train Member

    Joined:
    Jul 12, 2017
    Messages:
    3,412
    Thanks Received:
    3,788
    Location:
    Texas (trucking since 02/2013)
    0
    It’s unlikely that it’s coming from that hole. I believe that just an inspection hole. It’s common for the cover to be missing on trucks.

    It’d get an engine wash, and work from there. How long ago did they put the new clutch? If it was soon, you want to report it to them right away, and don’t have anyone work on it unless the shop is okay with it.

    Last edited: Apr 27, 2019
    PE_T, Apr 27, 2019
    #3
    Rideandrepair and Opendeckin Thank this.
  4. mitmaks

    mitmaks Road Train Member

    Joined:
    May 16, 2014
    Messages:
    2,558
    Thanks Received:
    2,072
    0
    Engine oil I'm guessing?
    Did the shop replace rear main seal? Looks like its leaking between tranny/engine. They should've replaced that rear main seal.

    mitmaks, Apr 27, 2019
    #4
    rank, Rideandrepair, Dave_in_AZ and 1 other person Thank this.
  5. Opendeckin

    Opendeckin Medium Load Member

    Joined:
    May 20, 2018
    Messages:
    452
    Thanks Received:
    1,261
    0
    Definitely the rear main.

    Opendeckin, Apr 27, 2019
    #5
    rank, Rideandrepair, Dave_in_AZ and 3 others Thank this.
  6. 77fib77

    77fib77 Road Train Member

    Joined:
    Jul 7, 2010
    Messages:
    10,476
    Thanks Received:
    65,454
    Location:
    St Louis
    0
    Yeah they replaced the rear seal. I never leaked before. Now it's huge.

    77fib77, Apr 27, 2019
    #6
    Rideandrepair Thanks this.
  7. 77fib77

    77fib77 Road Train Member

    Joined:
    Jul 7, 2010
    Messages:
    10,476
    Thanks Received:
    65,454
    Location:
    St Louis
    0
    If it's leaking at the seal would it cone out of that hole?

    77fib77, Apr 27, 2019
    #7
    Rideandrepair Thanks this.
  8. zinita17601

    zinita17601 Road Train Member

    Joined:
    Aug 19, 2010
    Messages:
    1,317
    Thanks Received:
    1,603
    Location:
    lancaster pa
    0
    Main seal put backward,happend to me after a clutch job

    zinita17601, Apr 27, 2019
    #8
    rank, dunchues, Rideandrepair and 4 others Thank this.
  9. whoopNride

    whoopNride Road Train Member

    Joined:
    Jan 13, 2008
    Messages:
    1,649
    Thanks Received:
    5,015
    Location:
    Miss.
    0
    Probably messed up the seal when they put the transmission back up. Very easy to do. I would definitely make them re-do it.

    Yes, it can leak down into the bell housing and drip out of that hole.

    whoopNride, Apr 27, 2019
    #9
    Vampire, rank, Rideandrepair and 3 others Thank this.
  10. 77fib77

    77fib77 Road Train Member

    Joined:
    Jul 7, 2010
    Messages:
    10,476
    Thanks Received:
    65,454
    Location:
    St Louis
    0
    How safe is it to drive?

    77fib77, Apr 27, 2019
    #10
    rahtek Thanks this.
