Need help identifying engine

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by tarvarre, Apr 10, 2024.

  1. tarvarre

    tarvarre Bobtail Member

    14
    5
    Dec 4, 2022
    0
    I have a 1990 Kenworth K 100 E it has a cummins 855 big cam in it. The problem I have is that the engine does not have the data plate on it. I know the engines have had some work on it so I don’t know if that’s why they removed it or not, but my question is what other markings on the engine that can tell me what size engine

    OLDSKOOLERnWV Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Lazer

    Lazer Road Train Member

    1,475
    2,298
    Jan 22, 2017
    0
    Clean the engine off as best you can. I’ve seen data plates, and decals in all sorts of places, front, rear, left side, right side, top cover, the only place I personally have not seen one is the oil pan, but maybe someday?

  4. OLDSKOOLERnWV

    OLDSKOOLERnWV Captain Redbeard

    16,699
    247,994
    Nov 29, 2011
    West Virginia
    0
    Look on the left rear of the block below the rear head gasket, the serial number will be in the block there….


  5. OLDSKOOLERnWV

    OLDSKOOLERnWV Captain Redbeard

    16,699
    247,994
    Nov 29, 2011
    West Virginia
    0
    The serial number will tell you what the engine started it’s life as….

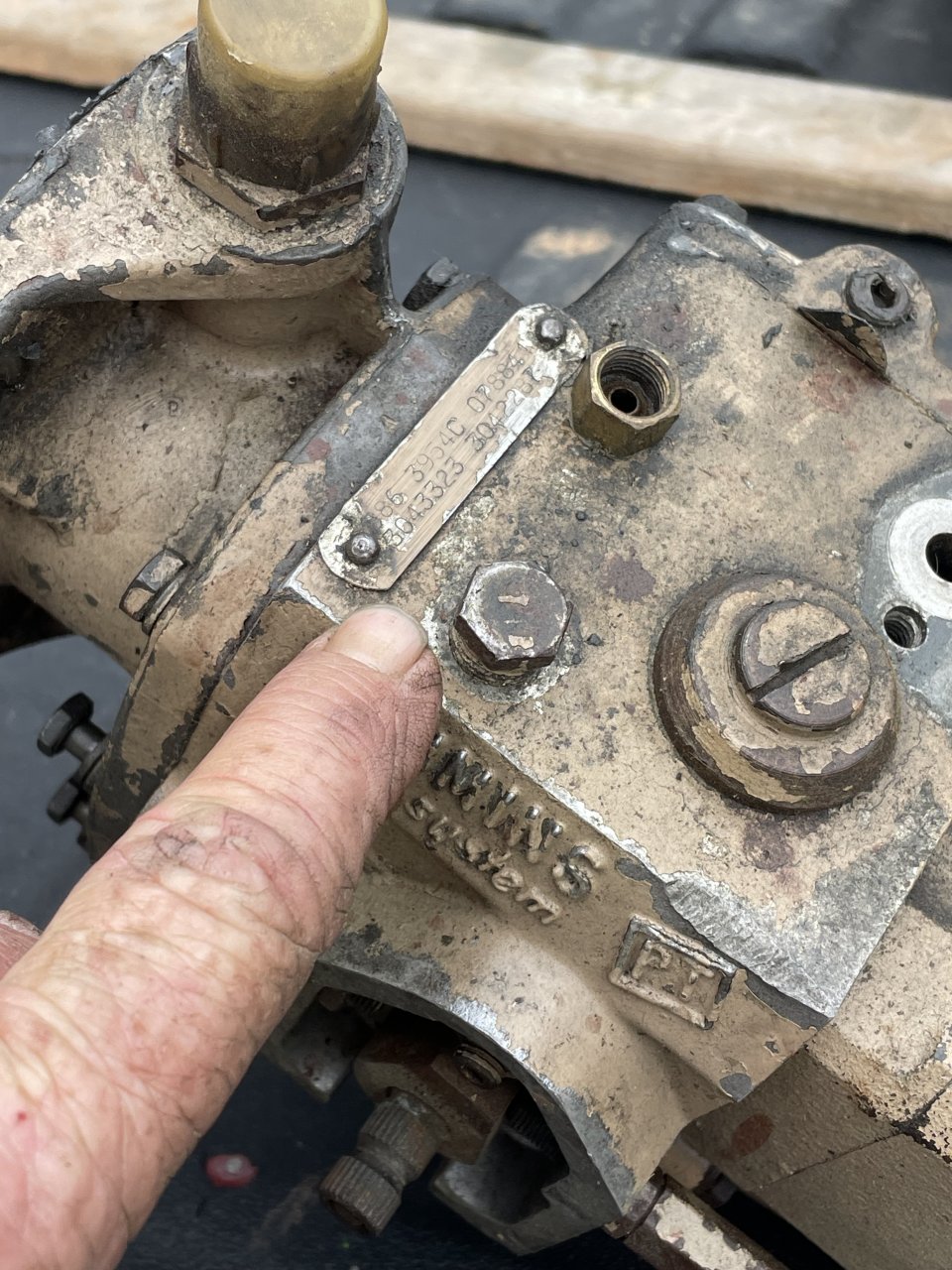

    But, the tag on top the pump will have another set of numbers, this will tell you what the fuel code is on the pump, in other words it tells you what hp the pump is calibrated for. Hope this helps….


    bjytech, blairandgretchen and tarvarre Thank this.
  6. OLDSKOOLERnWV

    OLDSKOOLERnWV Captain Redbeard

    16,699
    247,994
    Nov 29, 2011
    West Virginia
    0
    I’ve seen pumps without a tag, and the fuel code is stamped into the housing where the tag should be….

    tarvarre Thanks this.
  7. tarvarre

    tarvarre Bobtail Member

    14
    5
    Dec 4, 2022
    0
    Oldskool thanks I will check both the spots out

    OLDSKOOLERnWV Thanks this.
