Welding on a 55 gal. drum?

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Klleetrucking, May 31, 2017.

  1. Klleetrucking

    Klleetrucking Medium Load Member

    378
    346
    Dec 11, 2010
    S.C.
    0
    This question is more shop related but I seek your advice.

    I want to convert a 55 gal. oil drum into a diesel fuel storage tank. The drum was new at the time I purchased the oil (Shell Rotella T) and has never been outside. I've turned it upside down and gotten all the oil I could out of it. It's also a closed drum,, no removable top.

    I'd like to weld some lifting tabs to the top of the sides so I can pick it up with a small front end loader at my house and place it in a cart I'm building. With my fresh oil drum I lift it with nylon chokers around the "girth" in my shop with a chain fall, straight up/straight down so no travel is required.

    The real question is, would you weld on it and what preparations would you take?
    Two people said to fill it with water and weld but that seems awful messy and the residual water afterwards gives me concern.

    Thanks for taking the time to read this.

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. scottied67

    scottied67 Road Train Member

    10,826
    12,673
    Mar 14, 2010
    california norte
    0
    Might be better off to fabricate a lifting jig to place the drum in and lift the whole deal with the lifting jig. I would worry the thin wall of the drum may not be strong enough to carry the lifting eyes when the drum is full.

  4. Hulld

    Hulld Road Train Member

    2,884
    6,567
    Oct 19, 2015
    Upstate NY
    0
    You would have to weld to to the outer rim of the barrel to get any strength out of it.
    Also you may need to weld some plates to the rim and then weld eyelets to them so it's good and strong when your done.
    As far as welding on it you should be fine as you will be welding to the rim anyway.

    Klleetrucking Thanks this.
  5. chriskc

    chriskc Light Load Member

    173
    366
    Mar 31, 2013
    Kansas City mo
    0

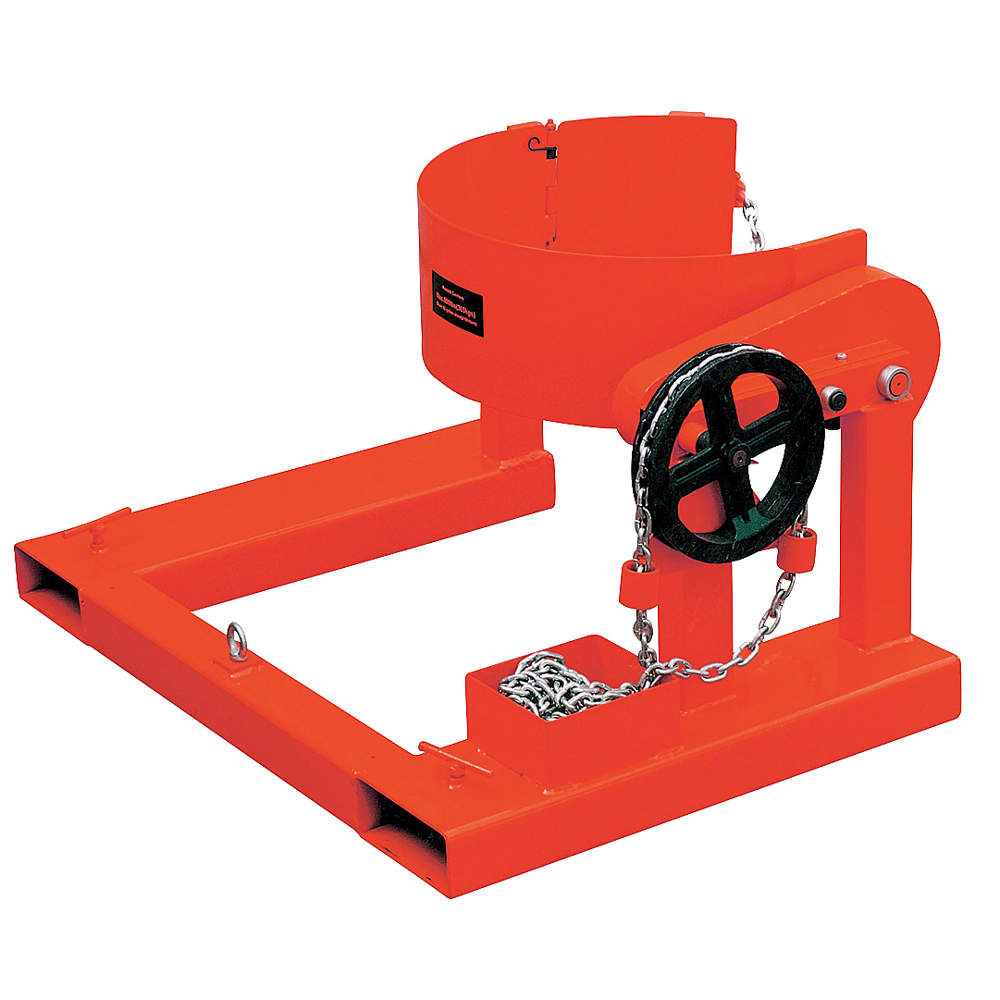

    They make lifting devices fit drums. Look them up on the inerweb

    Klleetrucking Thanks this.
  6. scottied67

    scottied67 Road Train Member

    10,826
    12,673
    Mar 14, 2010
    california norte
    0
  7. Klleetrucking

    Klleetrucking Medium Load Member

    378
    346
    Dec 11, 2010
    S.C.
    0
    Thanks, I've been on the web and there's plethora of lifting devices. Being the frugal (cheap) guy I am I wanted to fab something myself. This drum will only be lifted in/out of the pickup maybe 3 times a year.

  8. Klleetrucking

    Klleetrucking Medium Load Member

    378
    346
    Dec 11, 2010
    S.C.
    0
    Kinda rethinking the tab idea and pondering fabbing up a scissors type arrangement.

  9. chriskc

    chriskc Light Load Member

    173
    366
    Mar 31, 2013
    Kansas City mo
    0
    Sorry I meant to say look some up to see if you can fab something. The scissor type just look like two pieces of flat iron bolted together, shod be easy to make.

    Klleetrucking Thanks this.
  10. Klleetrucking

    Klleetrucking Medium Load Member

    378
    346
    Dec 11, 2010
    S.C.
    0
