WLL of Trailer Tiedown Points

Discussion in 'Flatbed Trucking Forum' started by JimmyWells, Nov 2, 2016.

  1. Gunner75

    Gunner75 Road Train Member

    5,701
    9,073
    Mar 17, 2014
    Jackson Center Ohio
    0
    Well if we all agreed it be a pretty boring world. I'm just here to make #### interesting

    JimmyWells and MJ1657 Thank this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Lostkeys

    Lostkeys Heavy Load Member

    903
    6,243
    Jan 8, 2011
    Archbold,OH
    0
    per Reitnouer's manual...


    Attached Files:

    JimmyWells and Gunner75 Thank this.
  4. Gunner75

    Gunner75 Road Train Member

    5,701
    9,073
    Mar 17, 2014
    Jackson Center Ohio
    0
    Did you find these online? Cause I searched for about 45 minutes earlier and was unable.

  5. Lostkeys

    Lostkeys Heavy Load Member

    903
    6,243
    Jan 8, 2011
    Archbold,OH
    0
    No, I bought a bigger bubba this year.

    Gunner75 Thanks this.
  6. Gunner75

    Gunner75 Road Train Member

    5,701
    9,073
    Mar 17, 2014
    Jackson Center Ohio
    0
    Well thank you for posting these, I've downloaded them to my phone just Incase i need these late

    Lostkeys Thanks this.
  7. DL550CAT

    DL550CAT Road Train Member

    1,427
    1,482
    Oct 18, 2009
    Waynesburg, Pa
    0
    A tie down is only going to see 1/2 of the WLL of the chain. To get the full WLL of a chain it has to go from trailer around the load back to the trailer. Which means two attachment points to one chain. If you go from trailer to the load your chain is worth half its WLL. So again the tie down only sees half.
    I prefer not to use pipe spools because you can't see how thick of material was used. I have seen bent in pipe spools. I can see a stake pocket with out X-ray vision. If you go around both sides of a pocket you have 9 to12 inches of weld holding it on(both sides and across the front). It takes less than two inches of good weld (in steel) to be stronger than your chain.
    Yes you can bend or tear out a stake pocket. Every time I've seen it was because of excessive angle at an unsupported part of the pocket. Or again excessive angle on aluminum.
    I don't understand mfgs not fully welding pockets and spools Especially aluminum. Not welding all the way to the top and bottom gives the pocket a chance to start bending and tearing away from the rail.

  8. JimmyWells

    JimmyWells Road Train Member

    1,000
    1,078
    Apr 7, 2016
    0
    It's interesting how Reitnouer rates their pockets lower than their spools. Regardless, I think they make the best trailers on the market.

  9. DL550CAT

    DL550CAT Road Train Member

    1,427
    1,482
    Oct 18, 2009
    Waynesburg, Pa
    0
    I think it's because of the way they attach the pockets.

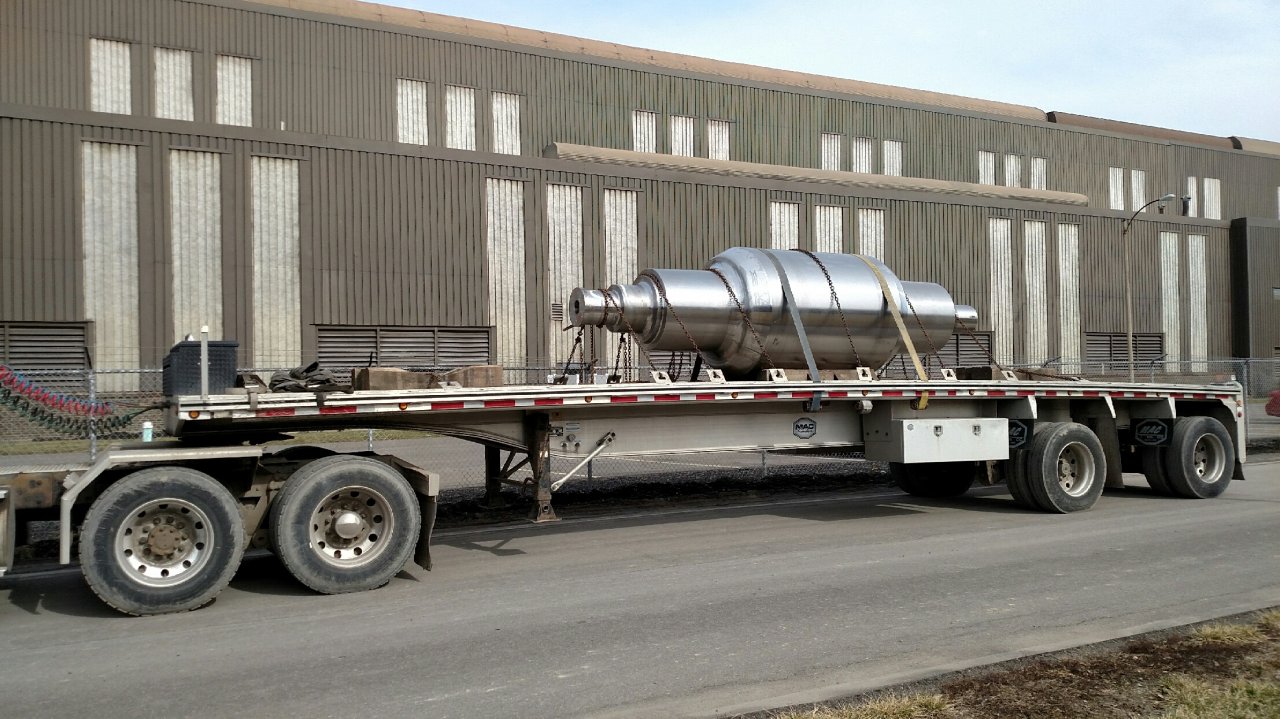

    I will agree to disagree on Reitnouer being the best..... my vote goes to MAC. Over 80k in 5 feet with plenty of arch no Reitnouer would hold it as well. This trailer run for over 5 years every day. Not all were over weight but we did 5-10 permit loads (rolls weighing up to 86k) a week with it. Lots of twisting turning when loaded heavy. It never had a weld crack. Even after they dropped a 66k pound roll on it was not hurt too bad. IMG_0062.JPG

  10. mitmaks

    mitmaks Road Train Member

    2,544
    2,065
    May 16, 2014
    0
    Company I work for uses Western trailers and Ive been told winches/stake pockets are rated @ 5,000lbs

    fargonaz Thanks this.
  11. JimmyWells

    JimmyWells Road Train Member

    1,000
    1,078
    Apr 7, 2016
    0
    We're all entitled to our opinions. I certainly do agree that MAC makes a great trailer as well. What are their rubrails rated for?
